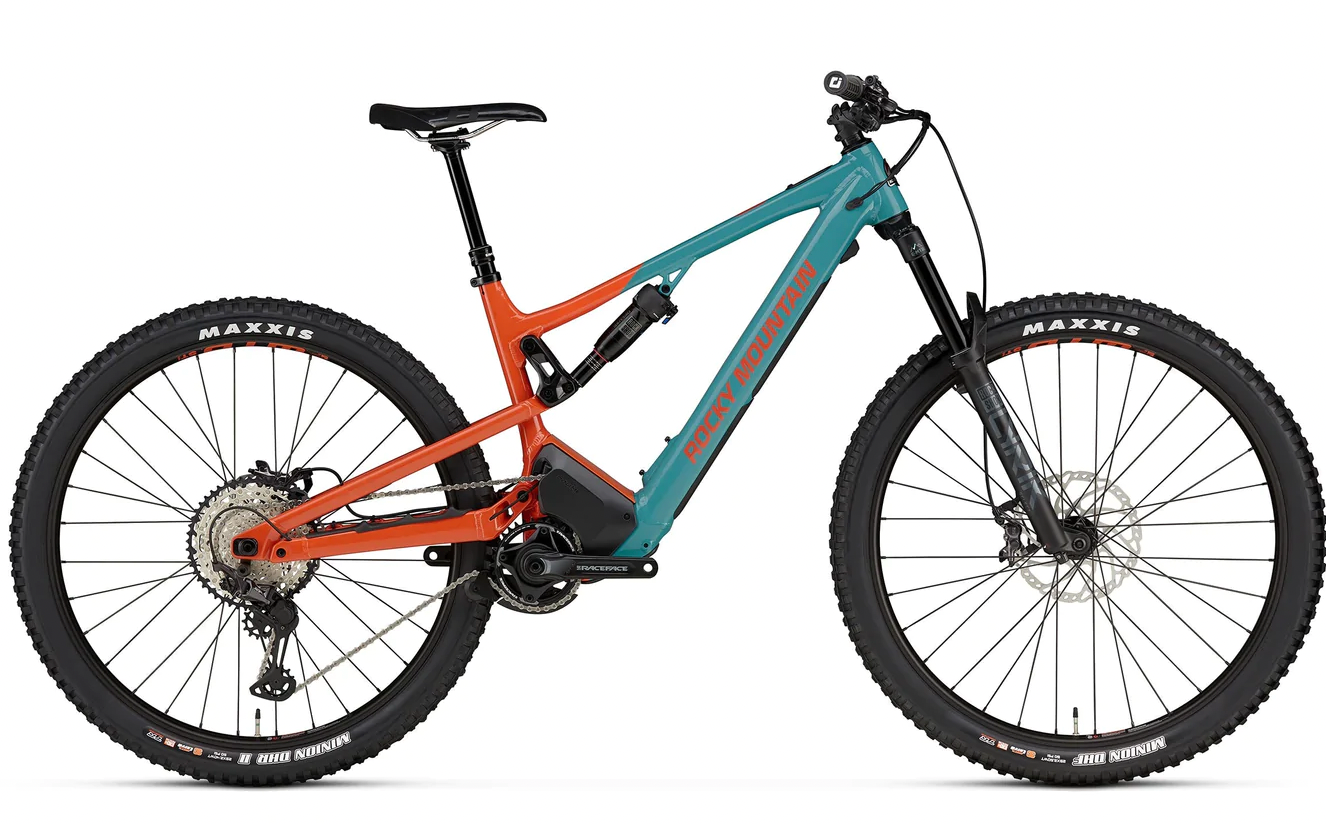

ROCKY MOUNTAIN 2023 - INSTINCT A70 POWER PLAY

FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry + Suspension Rate | 140mm Travel. FORM™ Alloy Rear Triangle

Fork

RockShox Lyrik Select RC 150mm | 42mm Offset

Front Travel

150mm

RockShox Deluxe Select+ | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 210x55mm | Size-Specific tune in FAQ

Rear Travel

140mm

FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

Stem

Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m

Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp

Grips

ODI Elite Pro Lock On

Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT66 203mm | R:Shimano RT66 203mm

Shifters

Shimano XT

Rear Derailleur

Shimano XT

Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm

Bottom Bracket

Shimano SM-BBMT500

Cassette

Shimano SLX 10-51T

Chain

Shimano M7100

Front Hub

Rocky Mountain Sealed Boost 15mm

Rear Hub

DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet

Spokes

F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0

Rims

WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl

Tires

F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready

Seatpost

Race Face Aeffect R Dropper 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG - XL = 175mm

Saddle

WTB Volt Race 142

Drive System

Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada

Battery

720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)

Remote

Rocky Mountain Micro Remote

Display

Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration

Charger

Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
