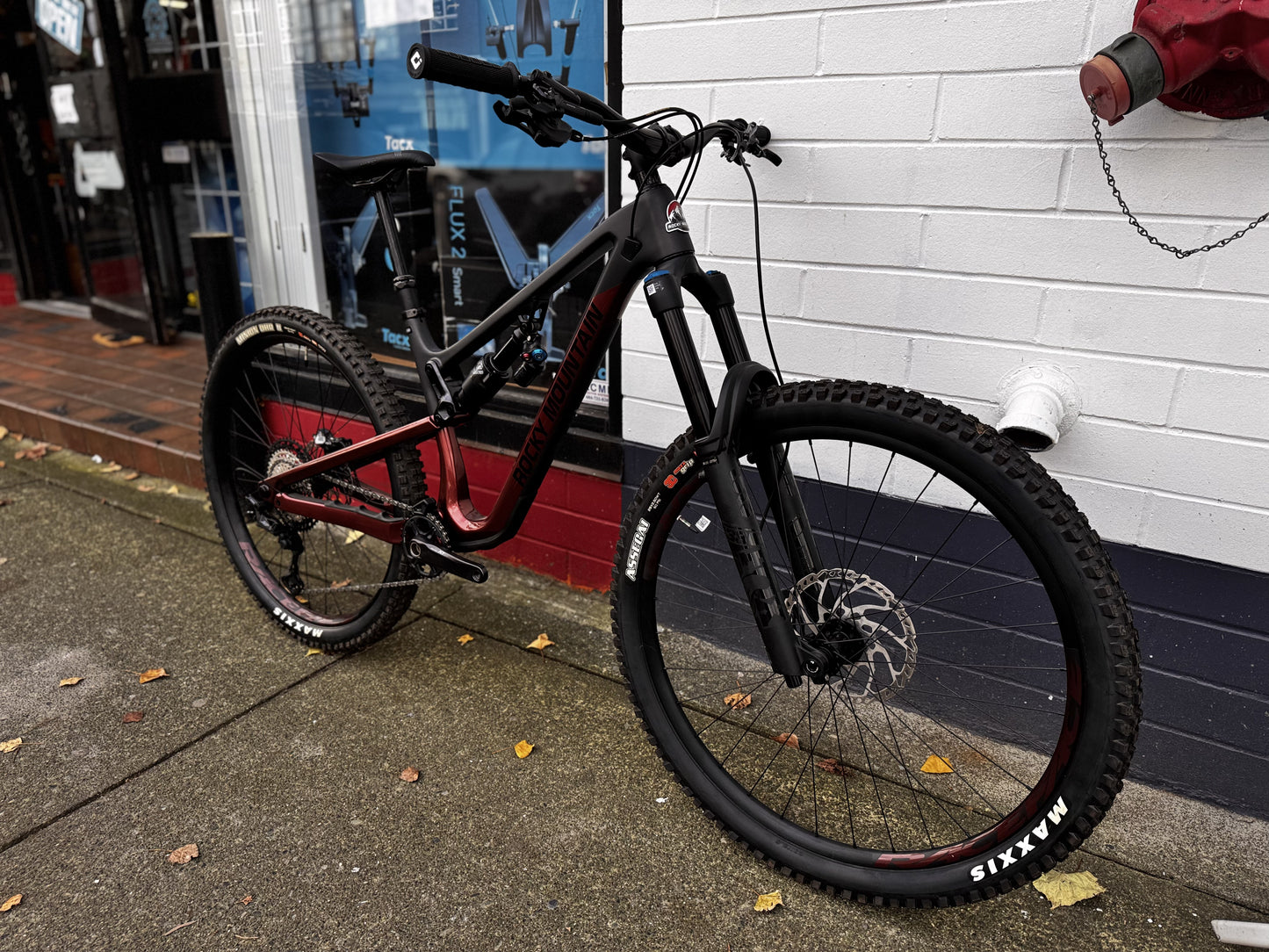

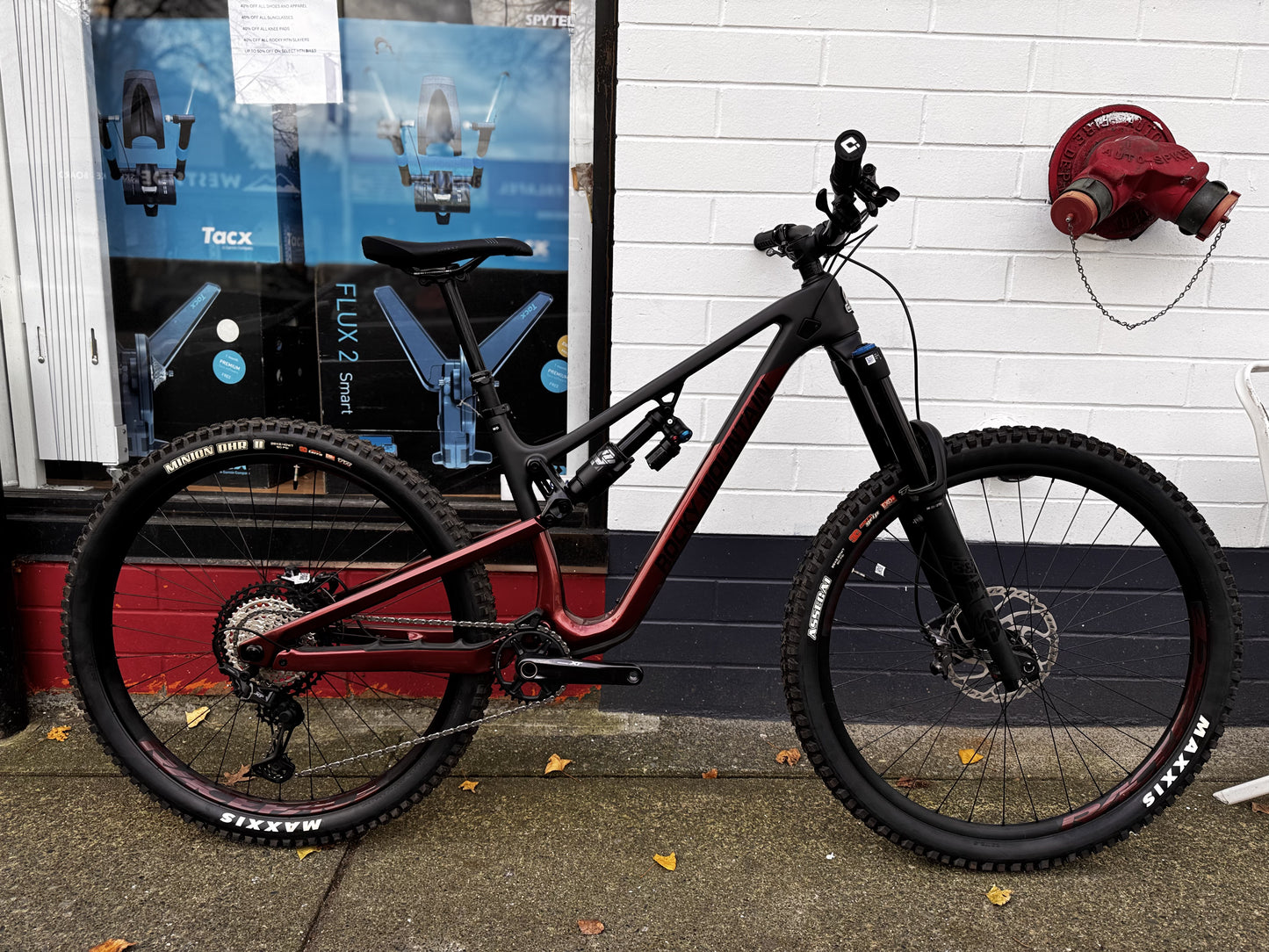

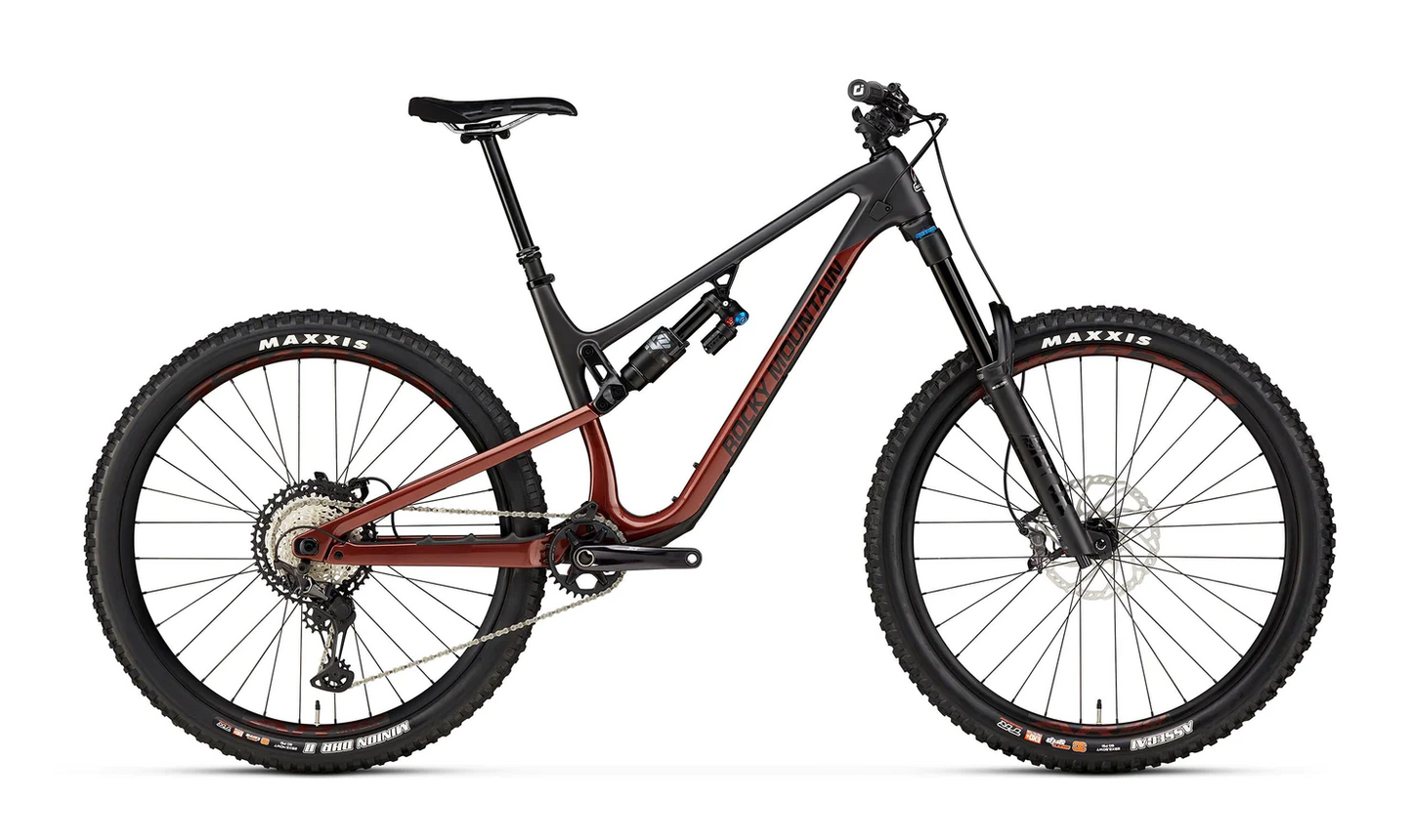

ROCKY MOUNTAIN 2023 - ALTITUDE C70

SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 160mm Travel. SMOOTHWALL™ Carbon Rear Triangle

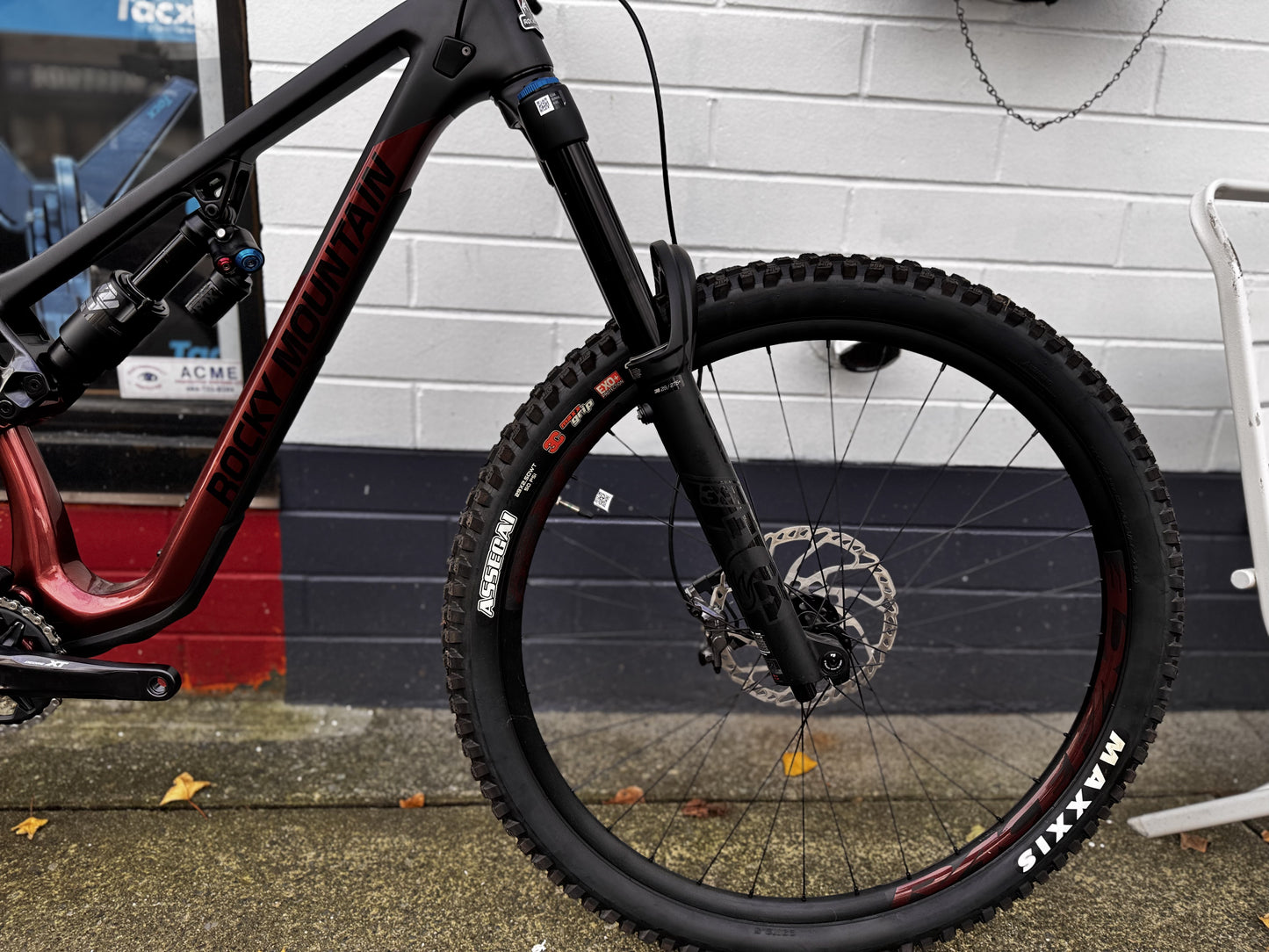

Fox 38 Float EVOL GRIP2 Performance Elite Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset

Front Travel

170

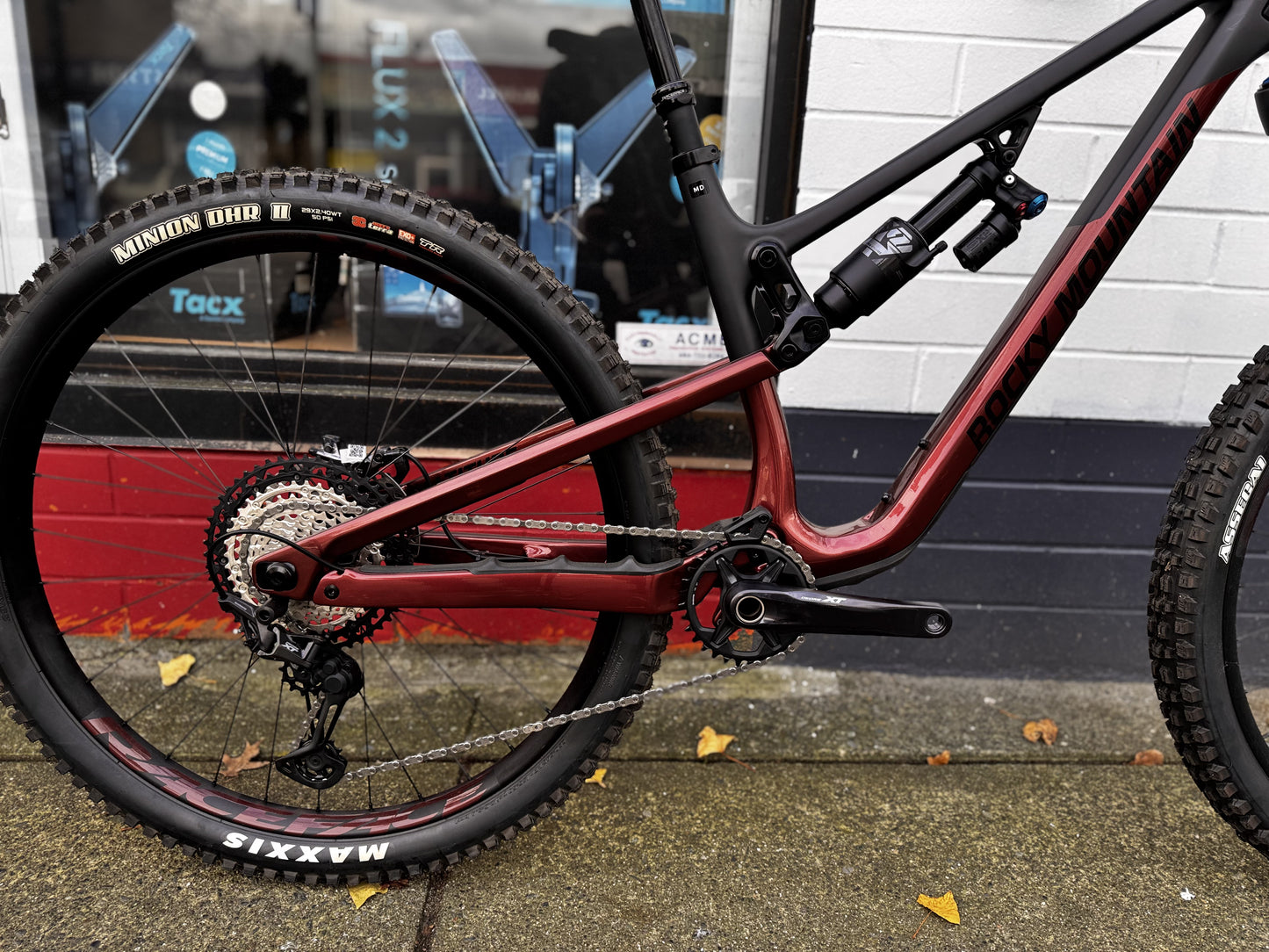

Fox Float X2 Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ

Rear Travel

160mm

FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

Stem

Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m

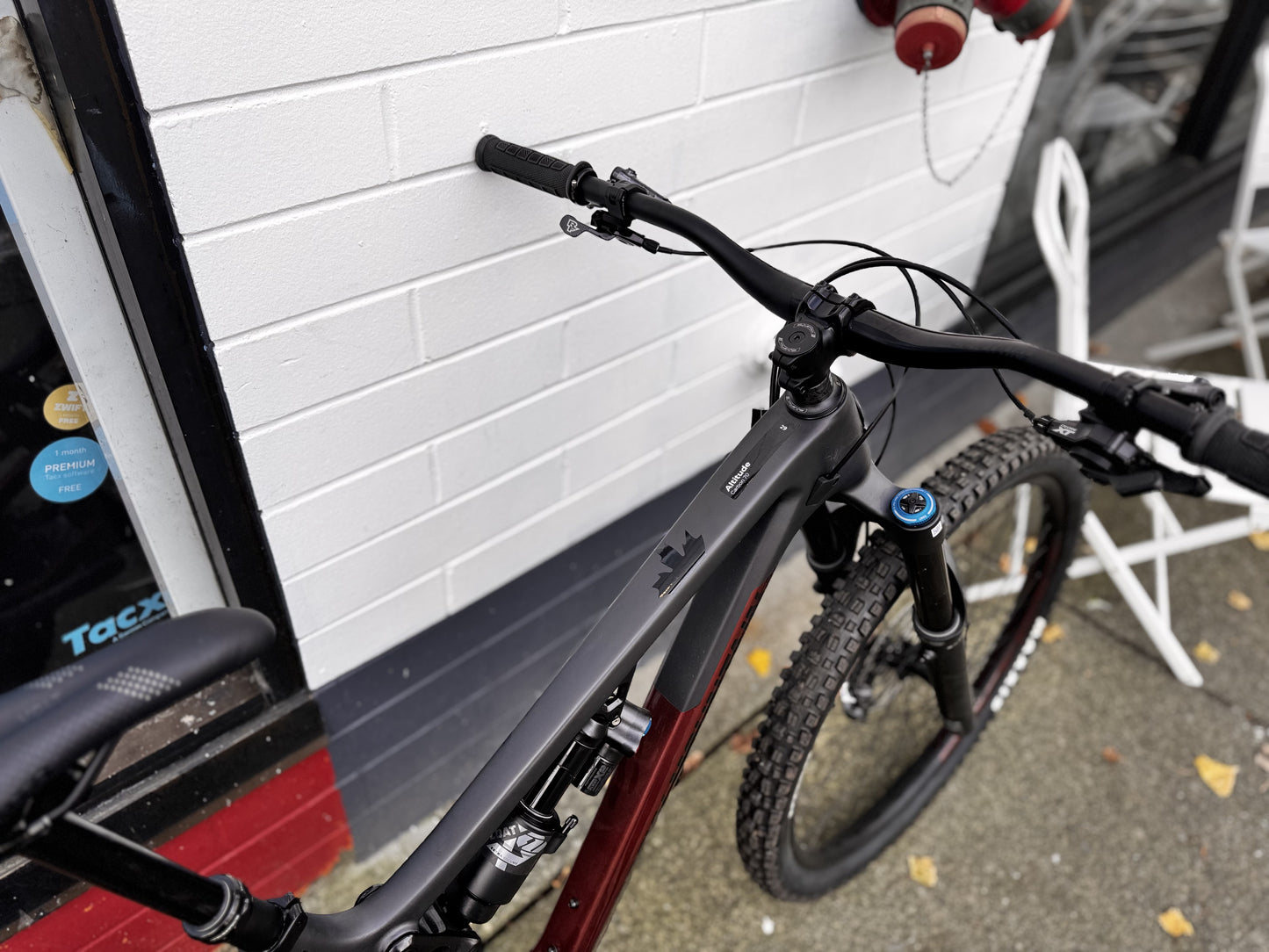

Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp

Grips

ODI Elite Pro Lock On

Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT66 203mm | R:Shimano RT66 180mm

Shifters

Shimano XT

Rear Derailleur

Shimano XT

Cranks & Chainring

Shimano XT | 32T | 24mm Spindle | 170mm Crank Length

Bottom Bracket

Shimano SM-BBMT500

Cassette

Shimano XT 10-51T

Chain

Shimano M8100

Front Hub

Rocky Mountain Sealed Boost 15mm

Rear Hub

DT Swiss 370 Boost 148mm | 18T Star-Ratchet

Spokes

DT Swiss Competition 2.0/1.8/2.0

Rims

Race Face AR 30 | 32H | Tubeless Ready - Tape / Valves Incl

Tires

F: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready

Seatpost

Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm

Saddle

WTB Volt Race 142
