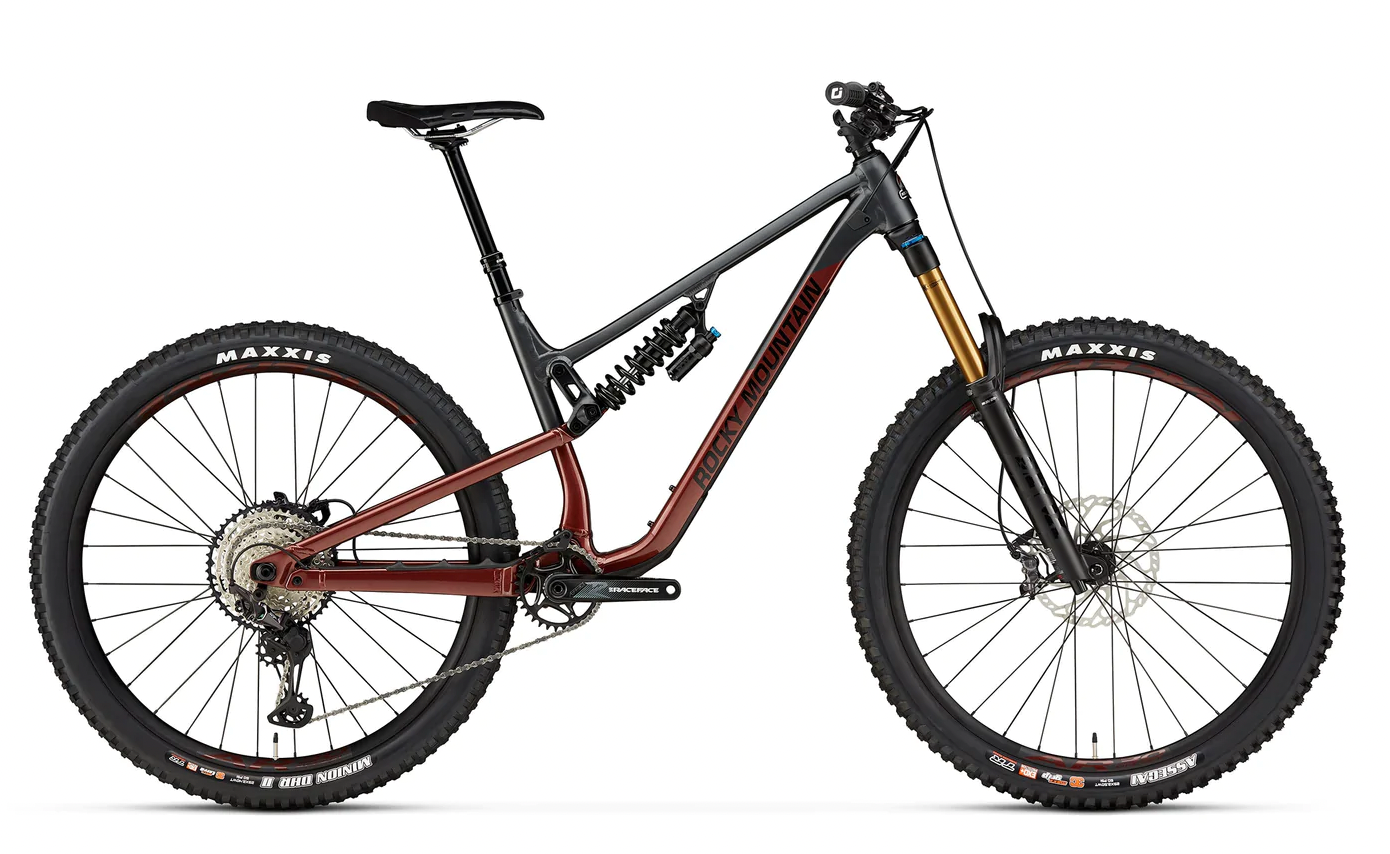

ROCKY MOUNTAIN 2023 - ALTITUDE A70 COIL

FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle| 160mm Travel. FORM™ Alloy Rear Triangle

Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset

Front Travel

170mm

FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

Stem

Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m

Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp

Grips

ODI Elite Pro Lock On

Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT66 203mm | R:Shimano RT66 180mm

Shifters

Shimano XT

Rear Derailleur

Shimano XT

Cranks & Chainring

Race Face Aeffect R Cinch | 32T | 24mm Spindle | 170mm Crank Length

Bottom Bracket

Shimano SM-BBMT500

Shimano SLX 10-51T

Chain

Shimano M7100

Front Hub

Rocky Mountain Sealed Boost 15mm

Rear Hub

DT Swiss 370 Boost 148mm | 18T Star-Ratchet

Spokes

DT Swiss Competition 2.0/1.8/2.0

Rims

Race Face AR 30 | 32H | Tubeless Ready - Tape / Valves Incl

Tires

F: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready

Seatpost

Race Face Aeffect R Dropper 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG - XL = 175mm

Saddle

WTB Volt Race 142

Weight

This information isn't available yet. We will update the weight of this model as soon as possible.
