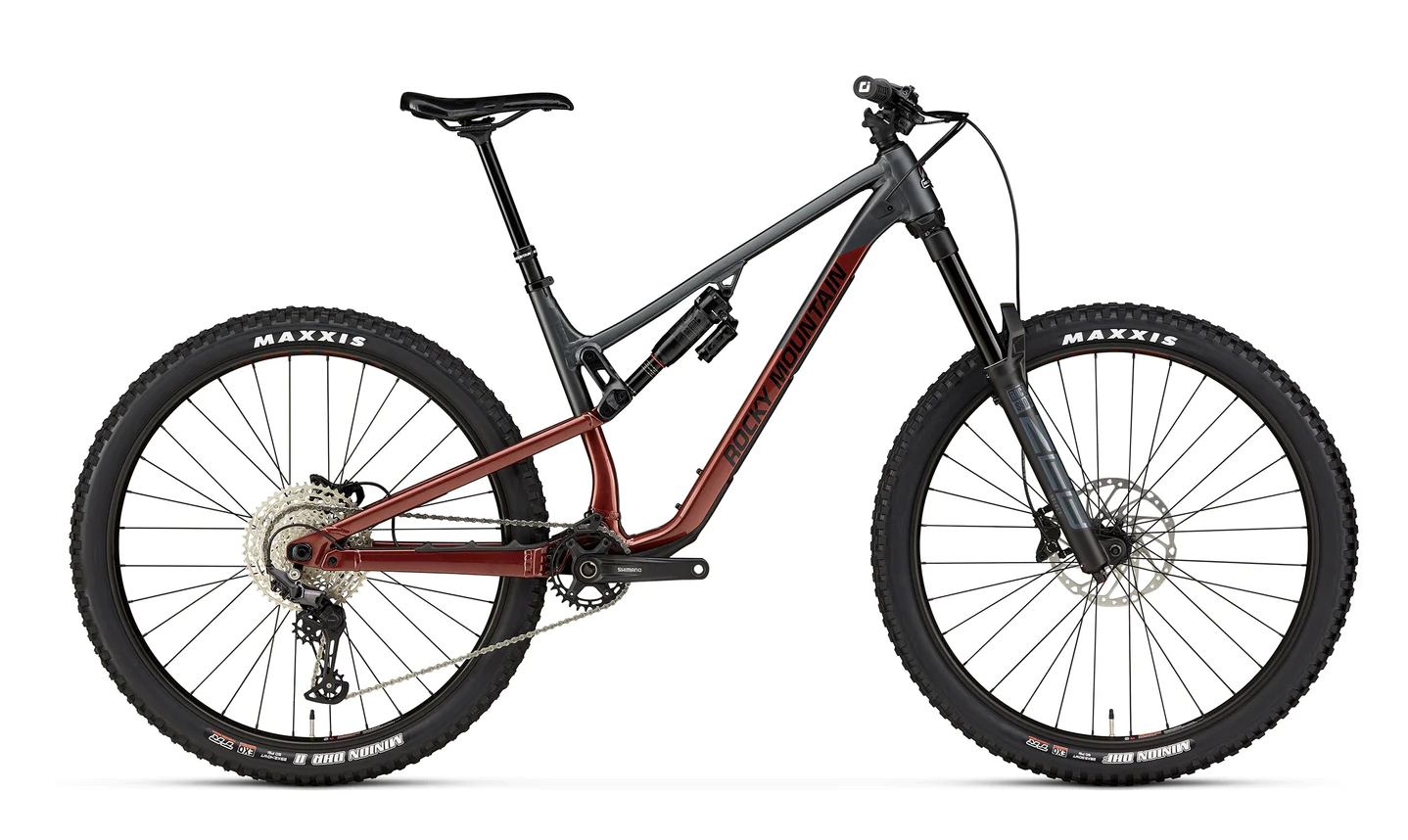

ROCKY MOUNTAIN 2023 - ALTITUDE A30

FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 160mm Travel. FORM™ Alloy Rear Triangle

Fork

RockShox Zeb Select RC 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset

Front Travel

170

RockShox Super Deluxe Select+ | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ

Rear Travel

160

FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

Stem

Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m

Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp

Grips

ODI Elite Pro Lock On

Shimano MT4120 4 Piston | Resin Pads | F:Shimano RT64 203mm | R:Shimano RT64 180mm

Shifters

Shimano Deore 12spd

Rear Derailleur

Shimano Deore 12spd

Cranks & Chainring

Shimano Deore | 32T | 24mm Spindle | 170mm Crank Length

Bottom Bracket

Shimano SM-BBMT500

Cassette

Shimano Deore 10-51T 12spd

Chain

Shimano M6100

Front Hub

Rocky Mountain Sealed Boost 15mm

Rear Hub

Novatec D462 Sealed Boost 148mm

Spokes

2.0 Stainless

Rims

WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl

Tires

F: Maxxis Minion DHF 2.5 WT EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready

Seatpost

Rocky Mountain Toonie Drop Composite 30.9mm | SM = 125mm | MD = 150mm | LG - XL = 170mm

Saddle

WTB Volt 142
