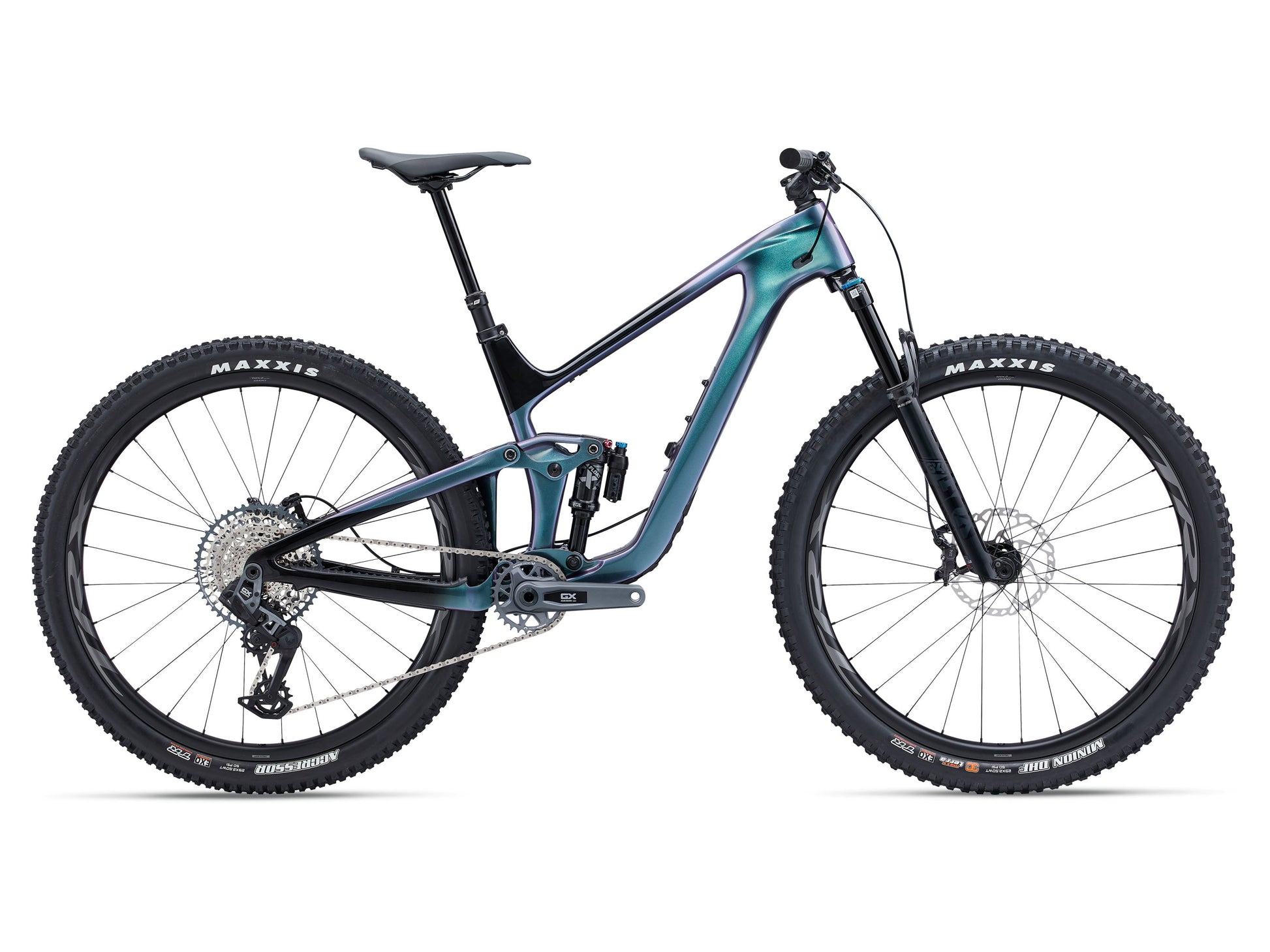

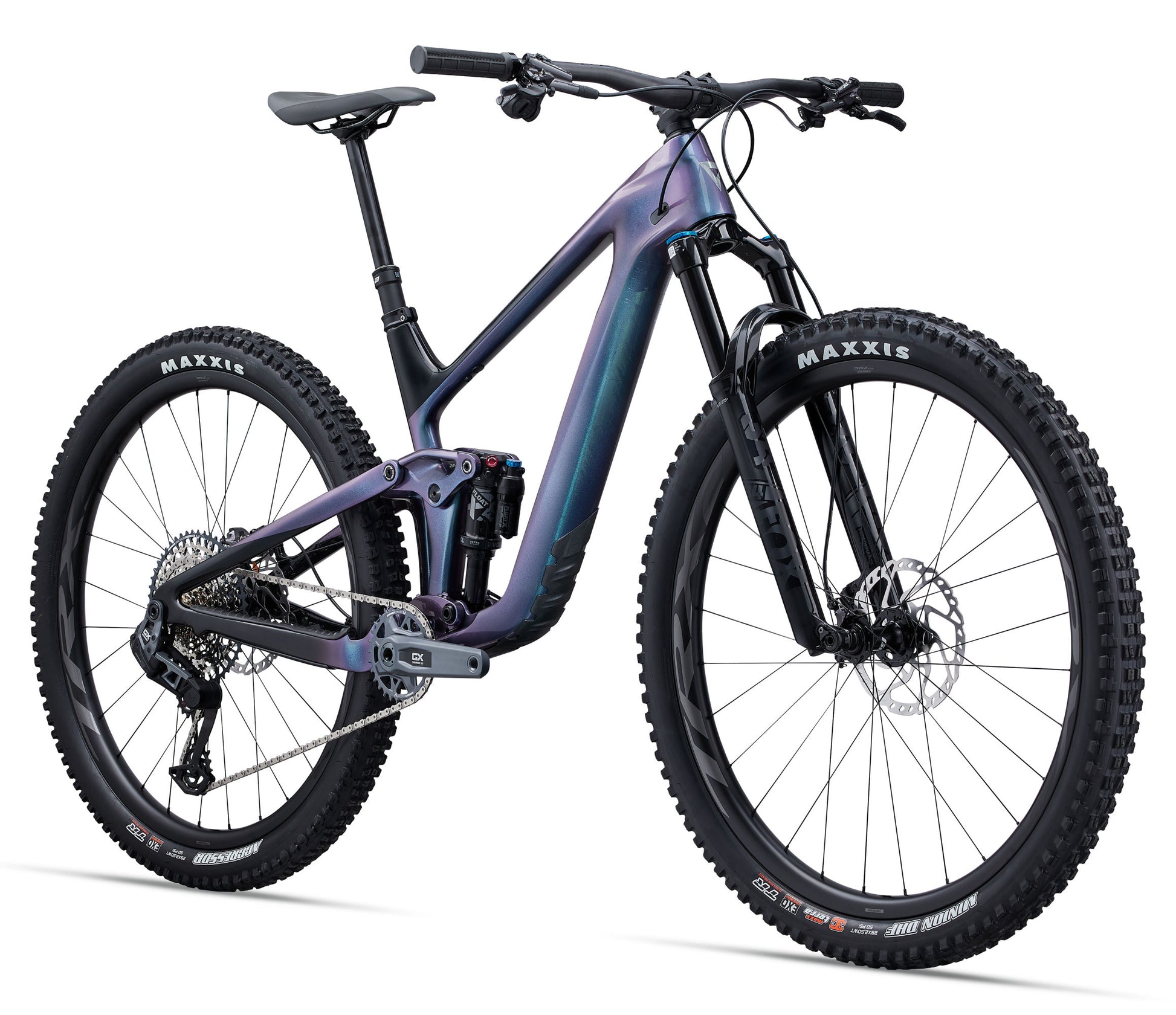

Giant Trance Advanced 1 – High-Performance 29er Trail Mountain Bike
Built to rip modern singletrack, the Giant Trance Advanced 1 is a fast, responsive 29er trail mountain bike designed for riders who want efficiency on the climbs and confidence when the trail points down. With a lightweight Advanced-grade composite frame, adjustable geometry, and Giant’s proven Maestro suspension, this bike thrives on technical climbs, flow trails, and hard-charging descents.
Trail-Tuned Performance Features
Adjustable Geometry for Aggressive Trail Riding
The flip chip geometry system lets you fine-tune head tube and seat tube angles along with bottom bracket height. Run it low and slack for stability at speed or steeper for tighter, technical trails—perfect for dialing in your setup to match terrain and riding style.
29er Wheels for Speed, Traction, and Control
Fast-rolling 29-inch wheels carry momentum over roots, rocks, and rough trail features. Increased contact patch and stability deliver confident cornering, improved climbing traction, and smooth control on high-speed singletrack.
Progressive Composite Frame & Maestro Suspension
The Advanced composite frameset features a longer reach and steeper seat tube angle for a modern trail position that pedals efficiently and descends with authority. Giant’s Maestro rear suspension provides 120mm of active travel, paired with a 130mm fork up front for balanced, responsive trail performance.
Giant Trance Advanced (Factory Build) – Specifications and Geometry
| Component | Specification |
|---|---|
| Sizes | S, M, L, XL |
| Colours | Shoreline / Sea Sparkle / Chrome |
| Frame | Advanced-grade composite front and rear triangles, 120mm Maestro suspension, flip chip – Maestro, 12x148mm thru-axle, integrated downtube storage |
| Fork | Fox 34 Factory, 130mm travel, GRIP 2 damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant |
| Shock | Fox Float X Factory, 185/50, custom tuned for Giant |
| Handlebar | Giant Contact Integrated SLR TR35, composite, 800mm width, 35mm clamp |
| Grips | Giant Tactal Pro — S/M: 120mm, L/XL: 130mm |
| Stem | Giant Contact Integrated SLR TR35, composite — S/M: 40mm, L/XL: 50mm |
| Seatpost | TranzX travel-adjustable dropper with remote — S: 120–150mm / 30.9 x 459mm, M: 140–170mm / 30.9 x 499mm |
| Saddle | Giant Romero SL |
| Pedals | N/A |
| Shifters | SRAM AXS Pod, discrete clamp, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM XO Eagle Transmission |
| Brakes | Shimano Deore XT BR-M8120 hydraulic disc brakes |
| Brake Levers | Shimano Deore XT BL-M8100 |
| Rotors | Shimano RT-66 — 180mm front / 180mm rear |
| Cassette | SRAM XO Transmission, 10–52T |
| Chain | SRAM XO |
| Crankset | SRAM XO Eagle Transmission, 30T, 55mm chainline — S: 165mm, M/L/XL: 170mm |
| Bottom Bracket | SRAM Press Fit |
| Rims / Wheelset | Giant TRX 2 29 Carbon WheelSystem, 30mm inner width |
| Hubs | Front: Giant MTB alloy, 6-bolt • Rear: Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tires | Front: Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR • Rear: Maxxis Aggressor 29x2.5, EXO, TR, tubeless |
| Extras | Tubeless prepared, max 2.6" tire size, max 34T chainring |
| Weight | Weight varies by size and build. For the most accurate weight, have your local Giant dealer weigh the bike. |
Giant Trance Advanced – Geometry Chart
| Geometry | S (LOW | HIGH) | M (LOW | HIGH) | L (LOW | HIGH) | XL (LOW | HIGH) |
|---|---|---|---|---|
| Seat Tube Length (mm) | 420 | 430 | 465 | 496 |
| Seatpost Insertion Depth (mm) | 290 | 300 | 335 | 366 |
| Seat Tube Angle | 77.2° | 78.0° | 76.3° | 77.0° | 76.3° | 77.0° | 76.3° | 77.0° |
| Top Tube Length (mm) | 561 | 559 | 599 | 597 | 626 | 624 | 663 | 661 |
| Head Tube Length (mm) | 100 | 110 | 120 | 130 |
| Head Tube Angle | 65.4° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° |
| Fork Rake / Offset (mm) | 44 | 44 | 44 | 44 |
| Trail (mm) | 126 | 120 | 126 | 120 | 126 | 120 | 126 | 120 |
| Wheelbase (mm) | 1166 | 1165 | 1195 | 1194 | 1224 | 1223 | 1263 | 1262 |
| Chainstay Length (mm) | 439 | 437 | 439 | 437 | 439 | 437 | 439 | 437 |
| Bottom Bracket Drop (mm) | 45 | 35 | 45 | 35 | 45 | 35 | 45 | 35 |
| Stack (mm) | 610 | 604 | 619 | 613 | 628 | 622 | 637 | 631 |
| Reach (mm) | 422 | 431 | 447 | 456 | 472 | 480 | 507 | 515 |
| Standover Height (mm) | 729 | 737 | 723 | 732 | 746 | 755 | 751 | 760 |
| Handlebar Width (mm) | 780 | 780 | 780 | 780 |
| Stem Length (mm) | 40 | 40 | 50 | 50 |
| Crank Length (mm) | 165 | 170 | 170 | 170 |
| Wheel Size | 29" | 29" | 29" | 29" |
