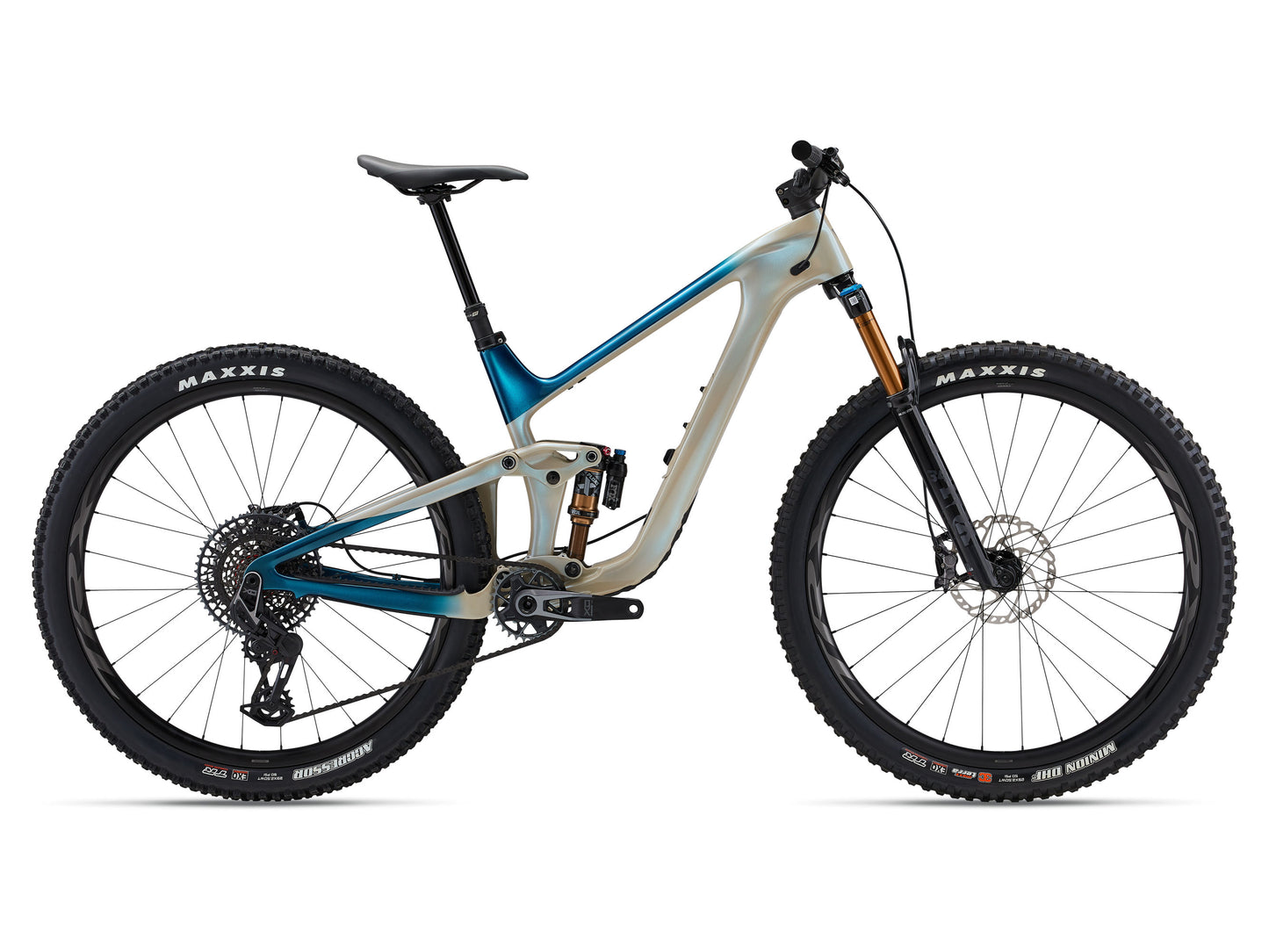

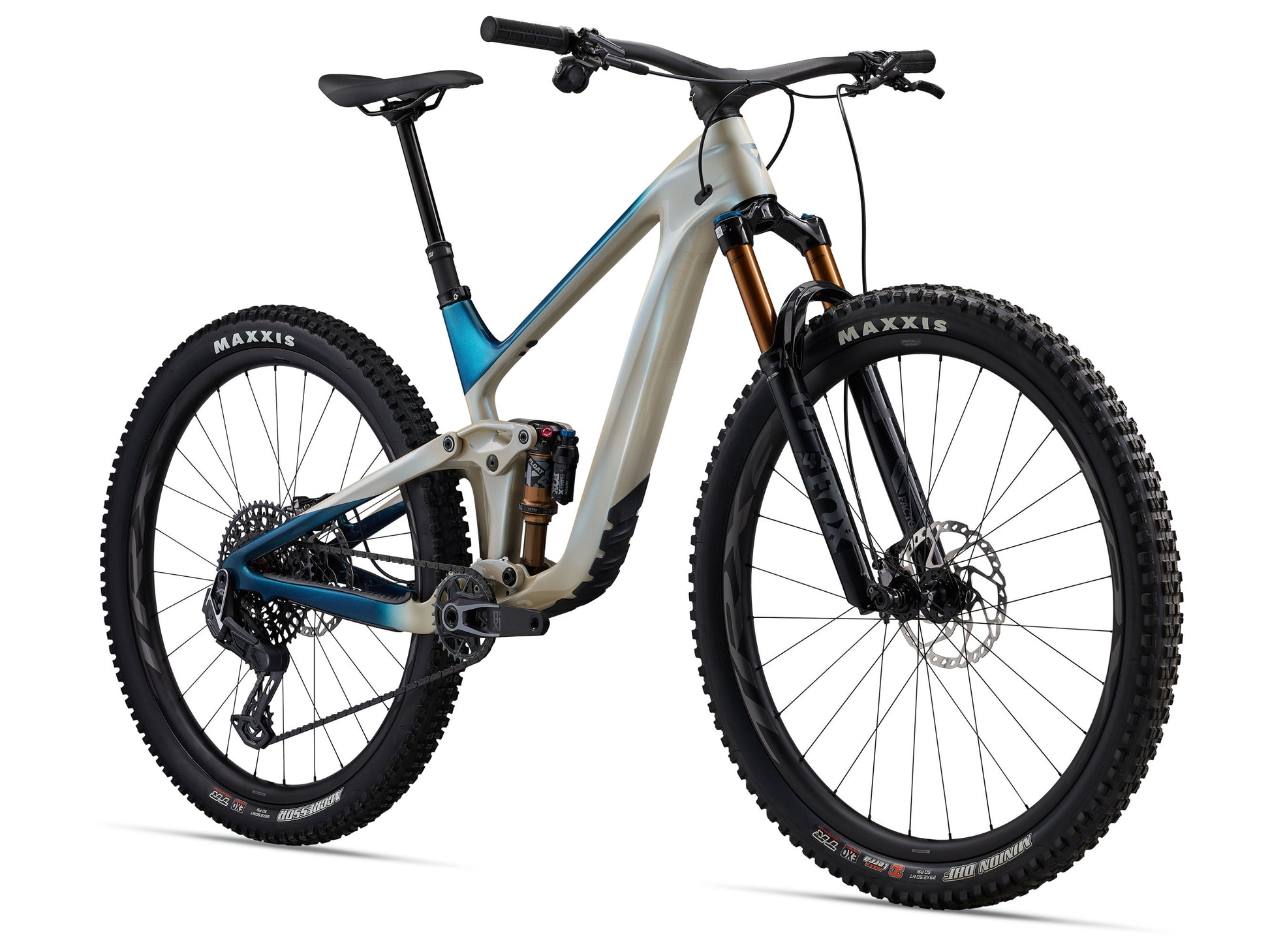

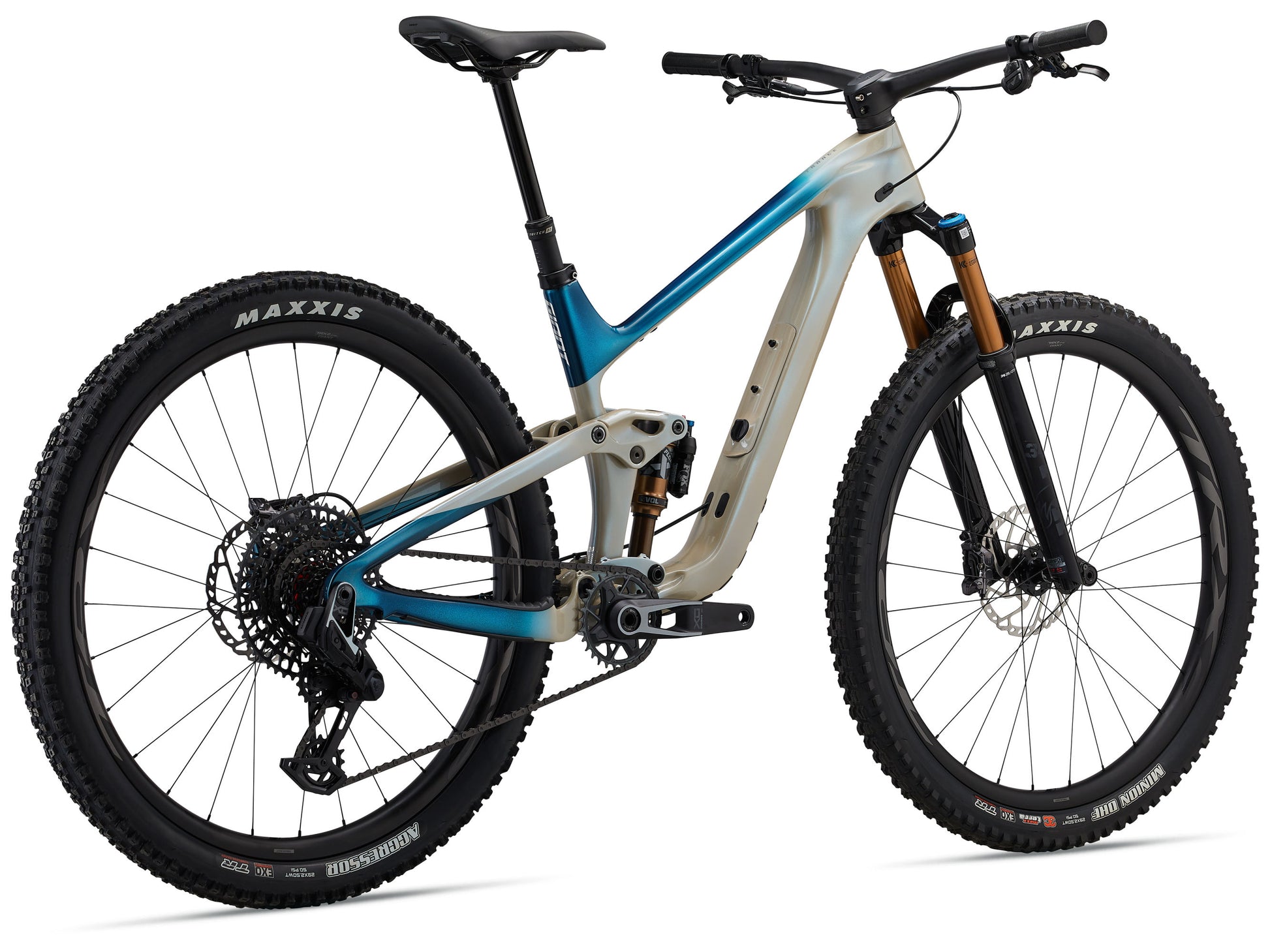

Giant Trance Advanced 1 – Fast, Confident 29er Trail Bike
Rip through singletrack with speed, precision, and confidence on the Giant Trance Advanced 1. Designed for aggressive trail riding, this lightweight full-composite 29er mountain bike delivers exceptional control and efficiency on climbs, descents, and everything in between. With adjustable frame geometry and a refined Maestro suspension system, the Trance Advanced 1 adapts to your riding style and local trail conditions with ease.
Key Performance Features
Adjustable Trail Geometry
The integrated flip chip allows you to fine-tune the head tube and seat tube angles, along with bottom bracket height. Dial in sharper handling for tight, technical trails or increase stability for high-speed descents.
29er Stability and Roll-Over Control
Optimized 29-inch wheels maintain momentum over roots, rocks, and rough terrain. The larger wheel size improves traction, balance, and confidence on steep climbs and fast, rugged singletrack.
Progressive Composite Frame Design

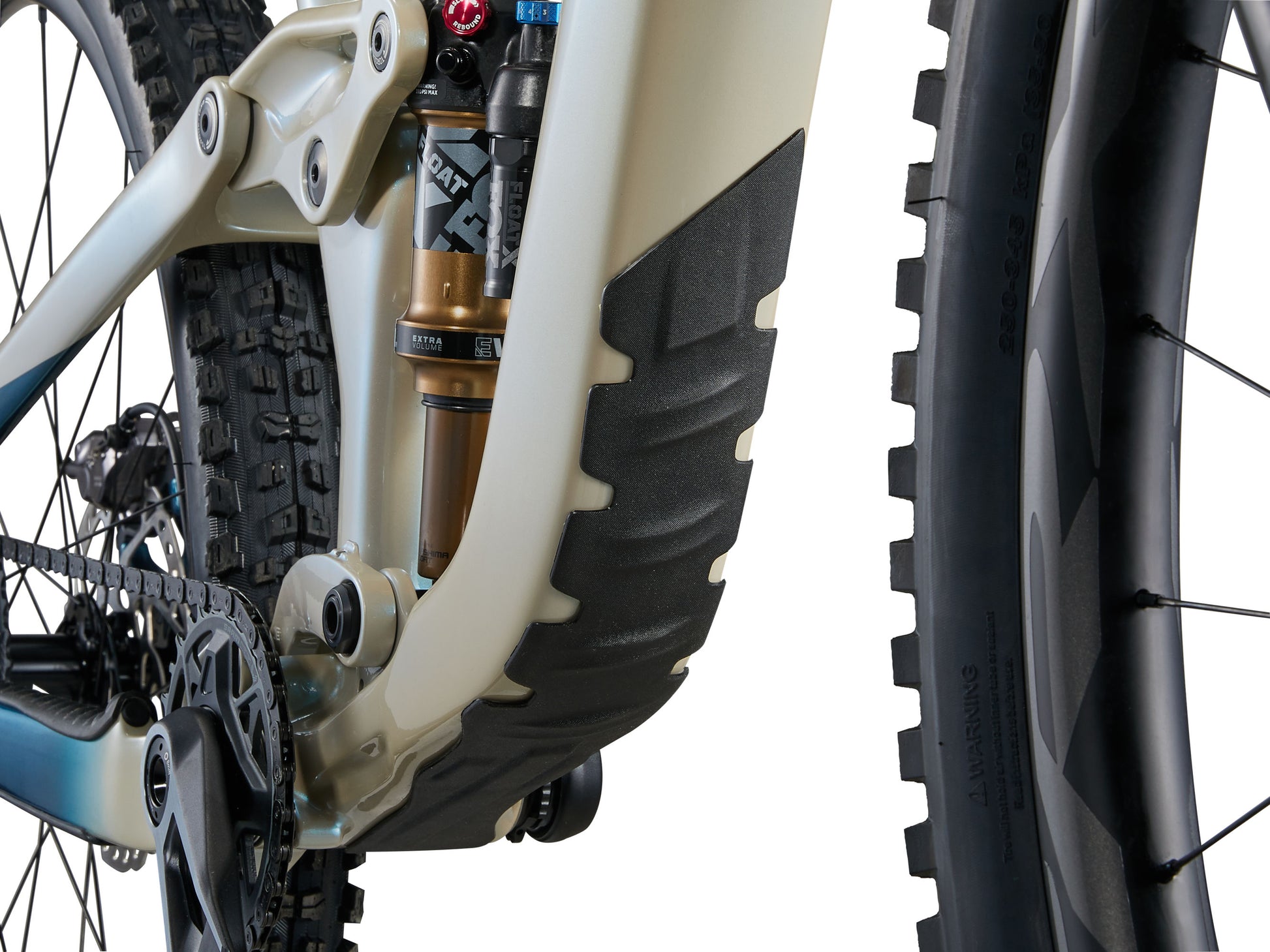

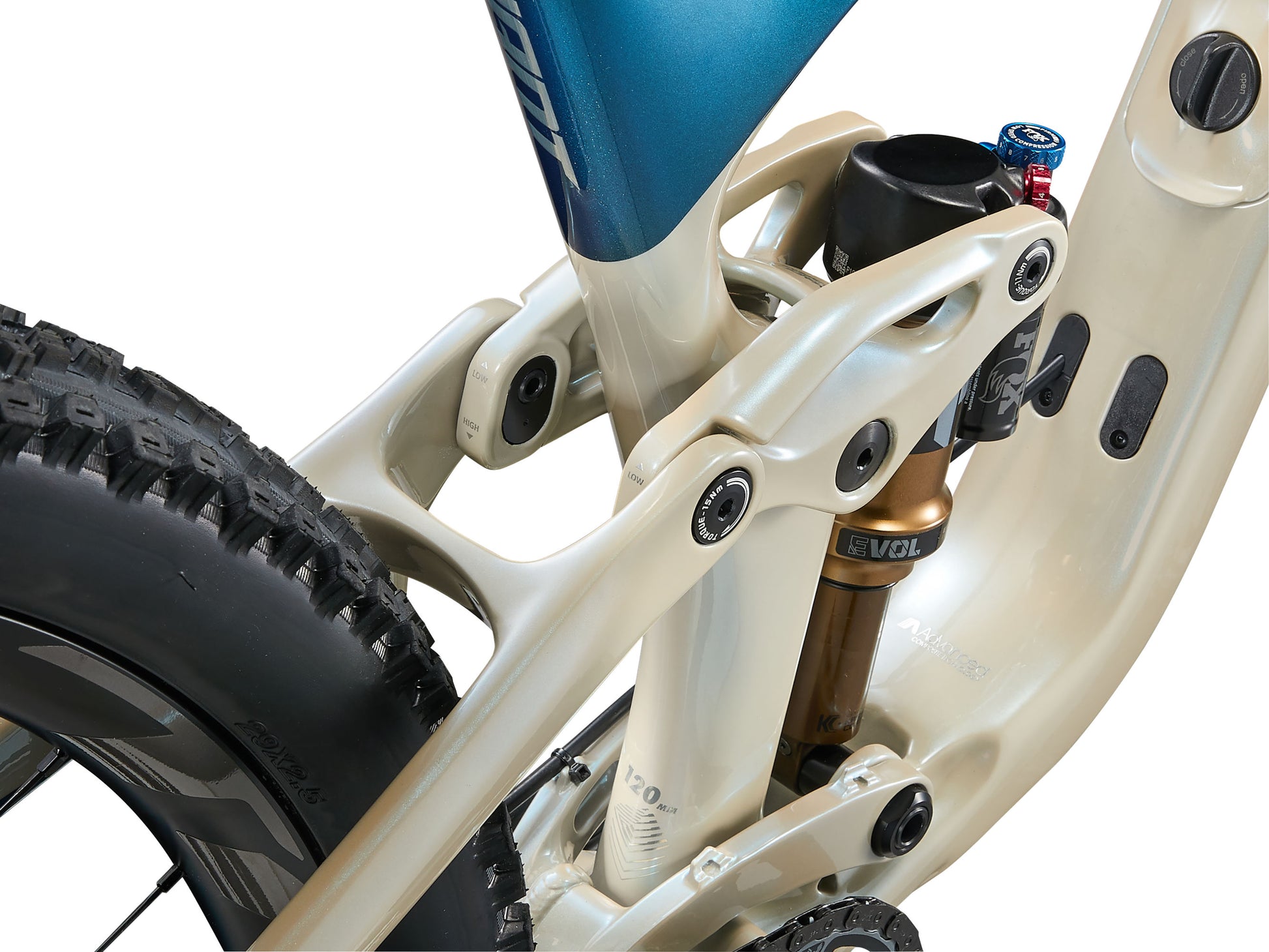

The Advanced-grade composite frameset features a longer reach and steeper seat tube angle for a modern trail riding position and improved climbing efficiency. Giant’s Maestro rear suspension delivers 120mm of smooth, active travel, paired with a 130mm front fork for confident trail performance without sacrificing pedaling efficiency.
Specs
| Component | Specification |
|---|---|
| Sizes | S, M, L, XL |
| Colours | Shoreline / Sea Sparkle / Chrome |
| Frame | Advanced-grade composite front and rear triangles, 120mm Maestro suspension, flip chip – Maestro, 12x148mm thru-axle, integrated downtube storage |

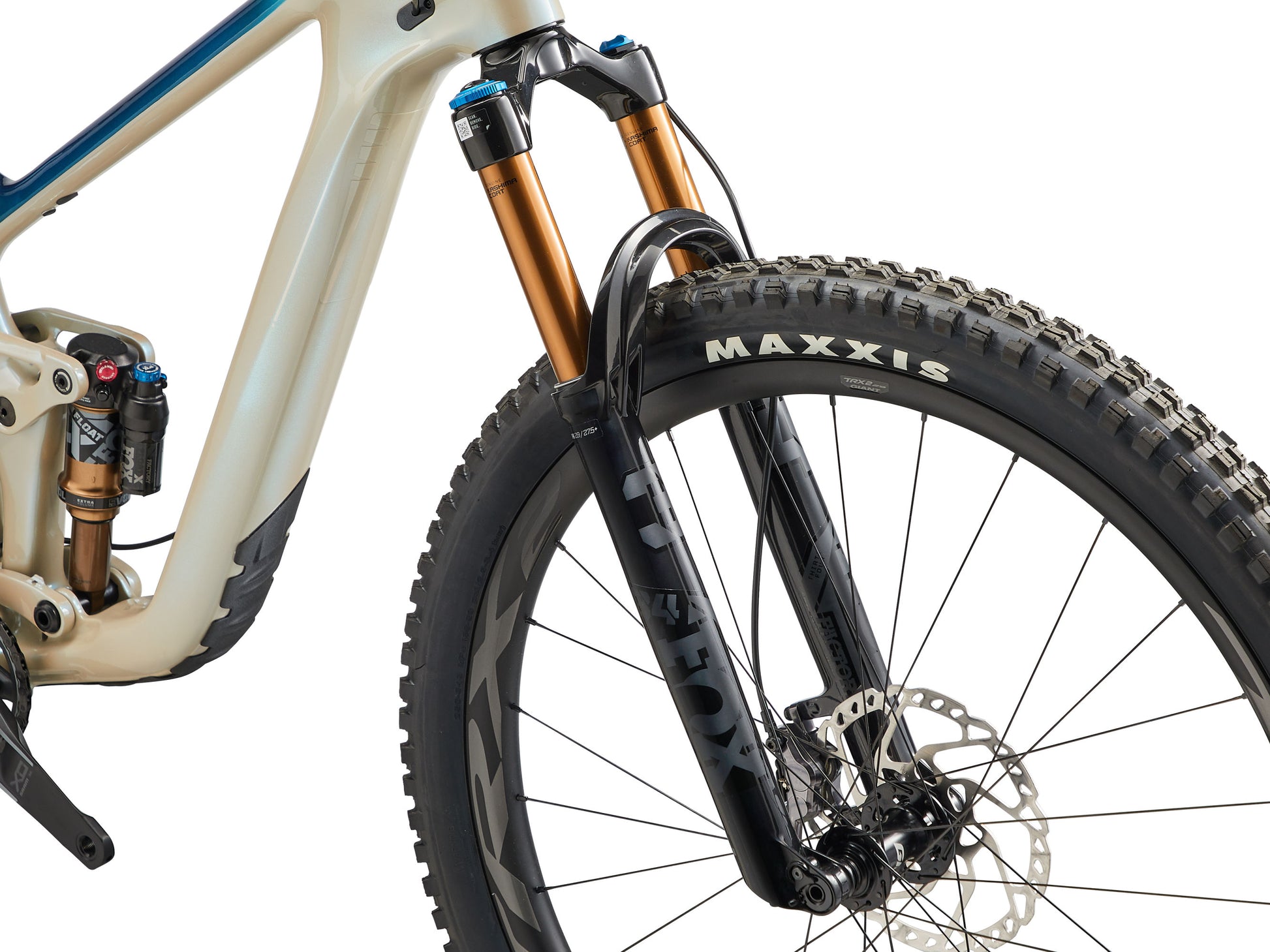

| Fork | Fox 34 Factory, 130mm travel, GRIP 2 damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant |

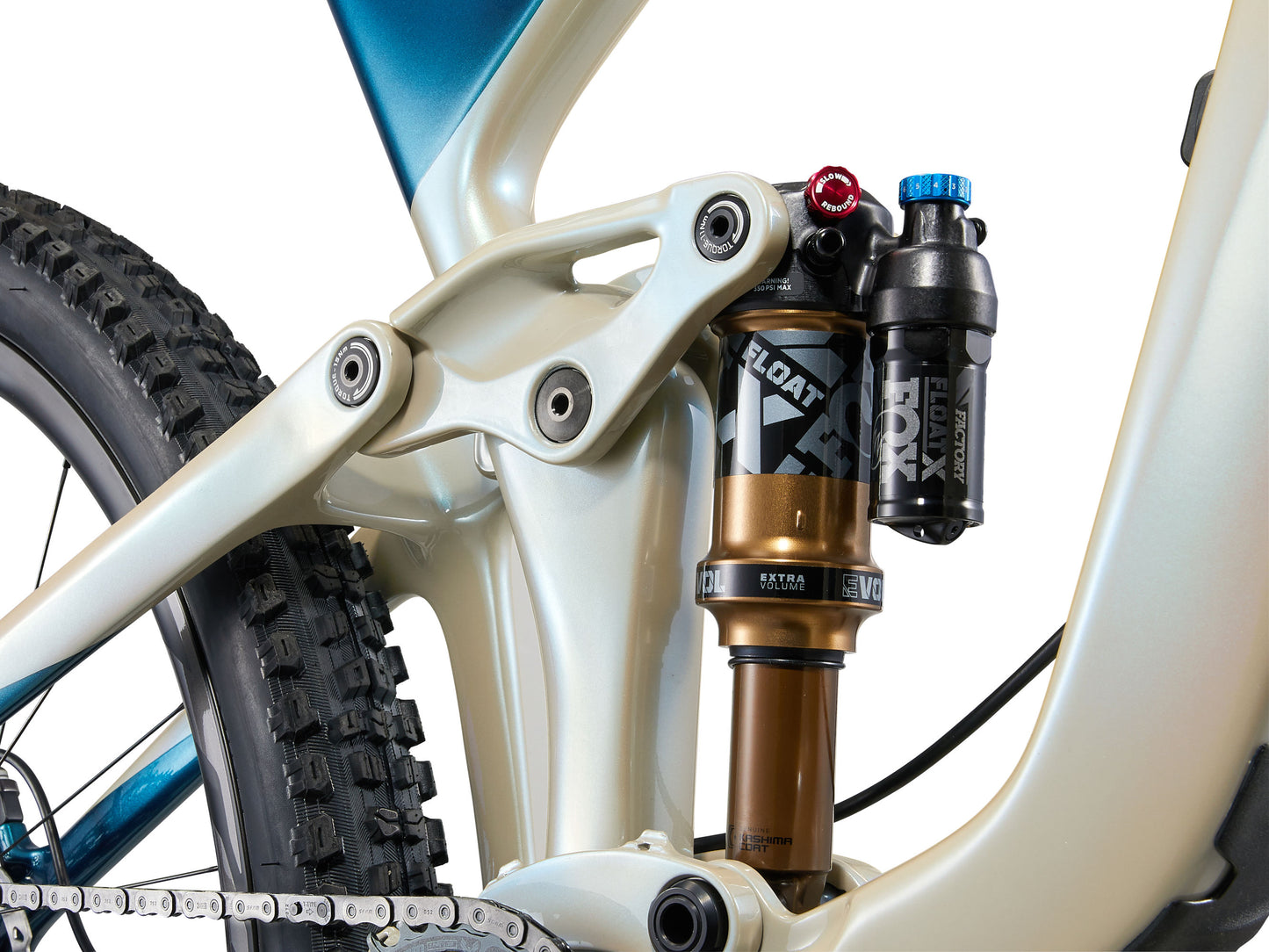

| Shock | Fox Float X Factory, 185/50, custom tuned for Giant |

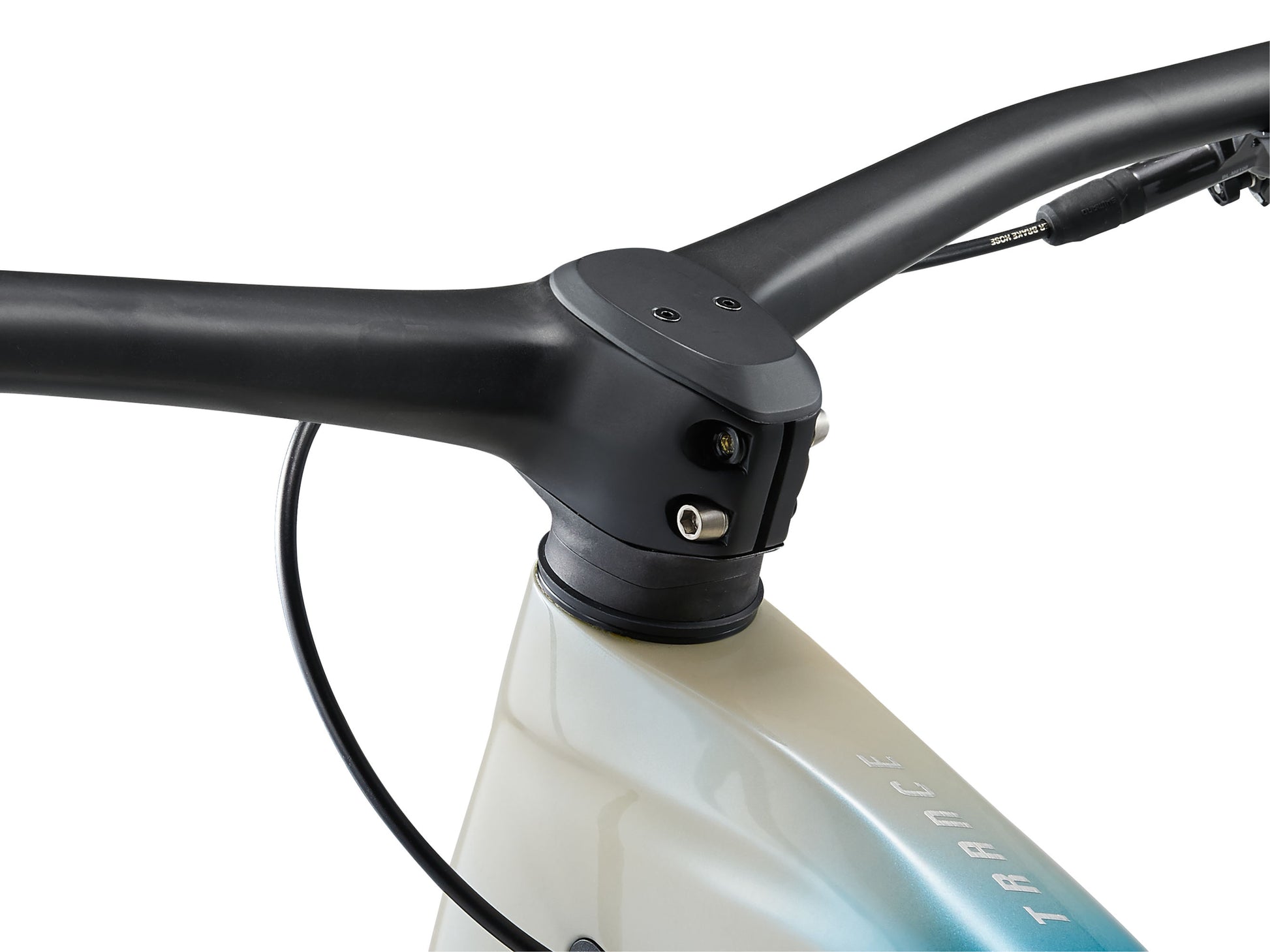

| Handlebar | Giant Contact Integrated SLR TR35, composite, 800mm width, 35mm clamp |
| Grips | Giant Tactal Pro — S/M: 120mm, L/XL: 130mm |
| Stem | Giant Contact Integrated SLR TR35, composite — S/M: 40mm, L/XL: 50mm |

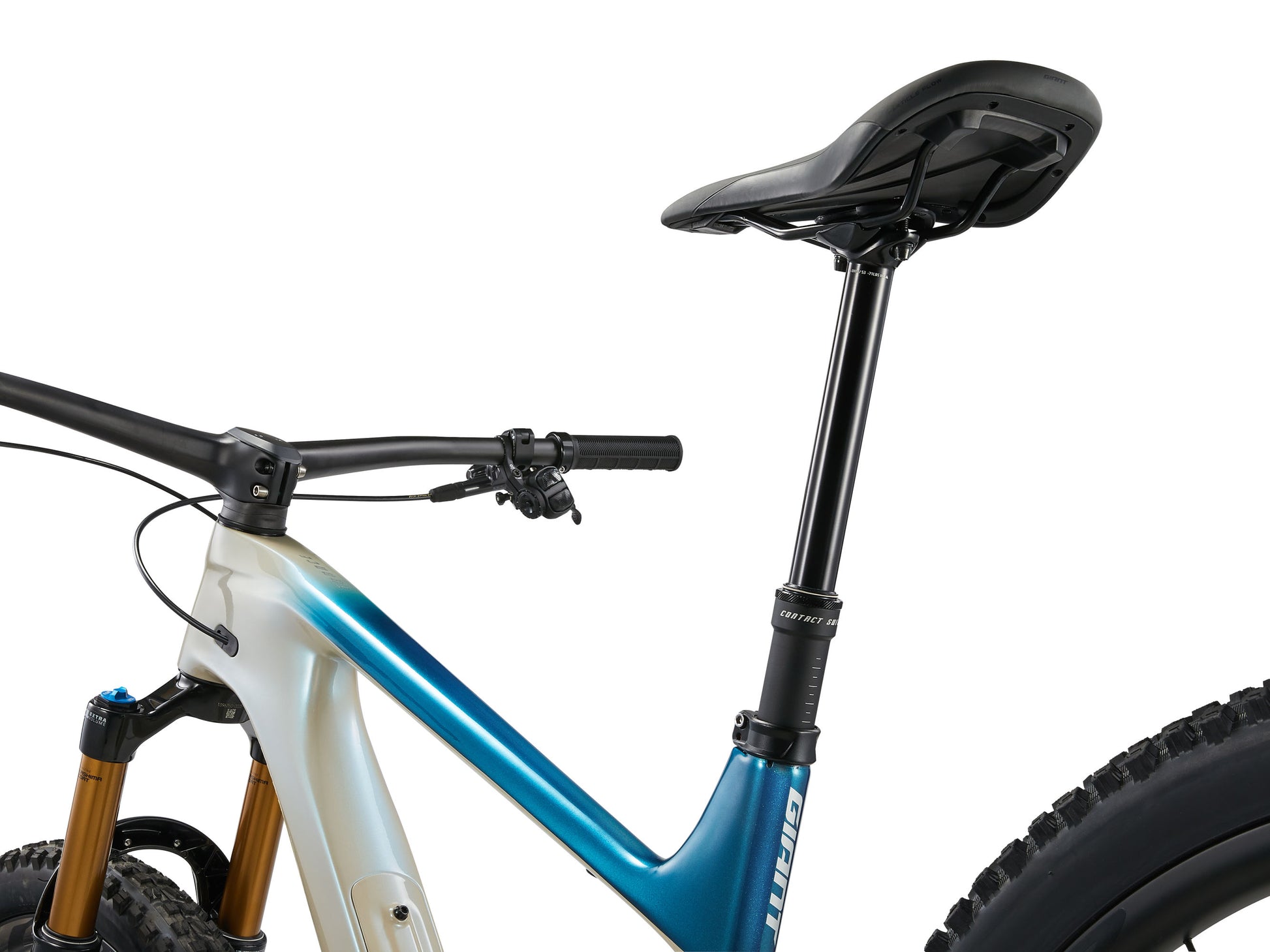

| Seatpost | TranzX travel-adjustable dropper with remote — S: 120–150mm / 30.9 x 459mm, M: 140–170mm / 30.9 x 499mm |
| Saddle | Giant Romero SL |
| Pedals | N/A |
| Shifters | SRAM AXS Pod, discrete clamp, 1x12 |
| Front Derailleur | N/A |

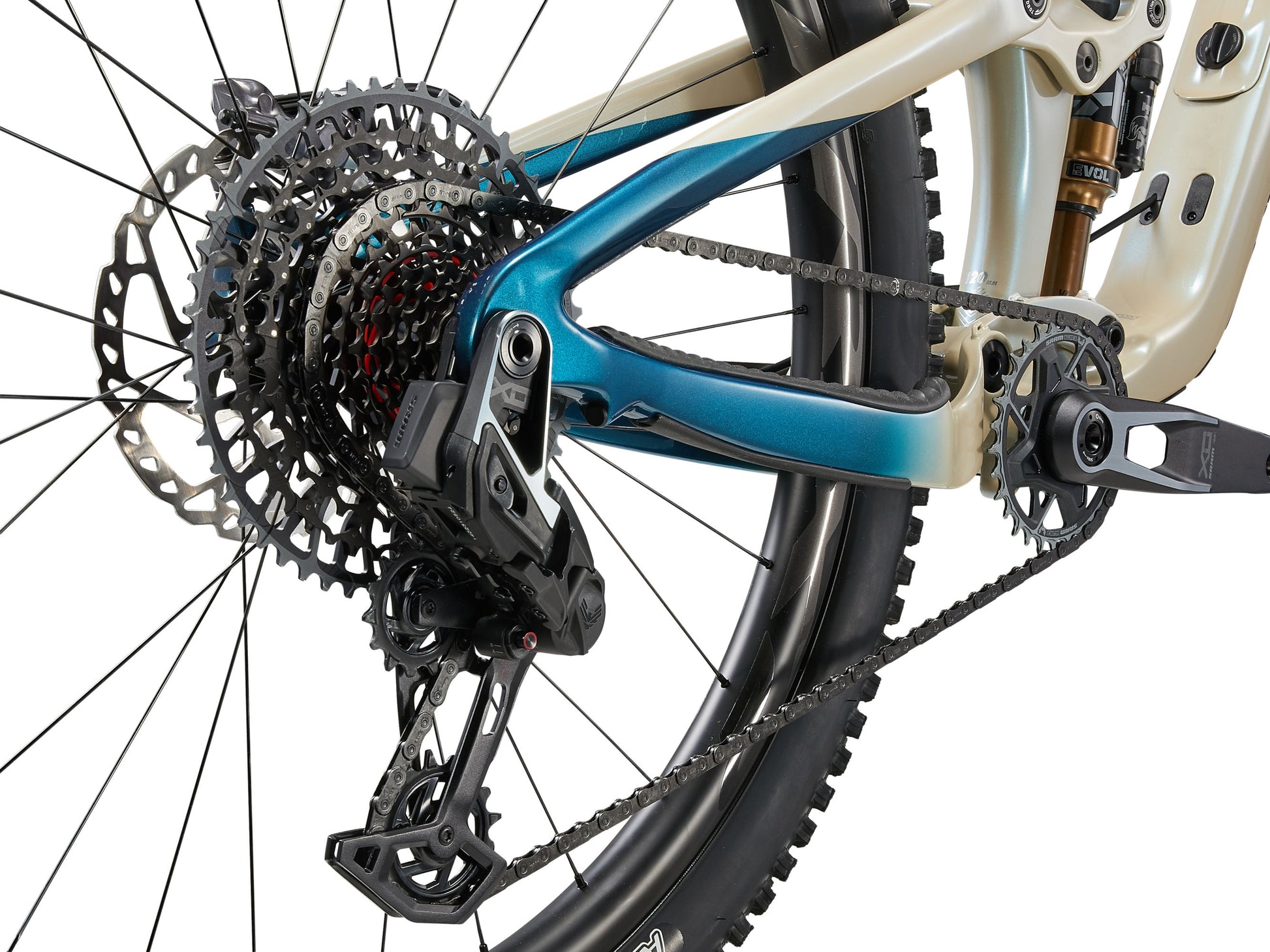

| Rear Derailleur | SRAM XO Eagle Transmission |
| Brakes | Shimano Deore XT BR-M8120 hydraulic disc brakes |
| Brake Levers | Shimano Deore XT BL-M8100 |
| Rotors | Shimano RT-66 — 180mm front / 180mm rear |
| Cassette | SRAM XO Transmission, 10–52T |
| Chain | SRAM XO |

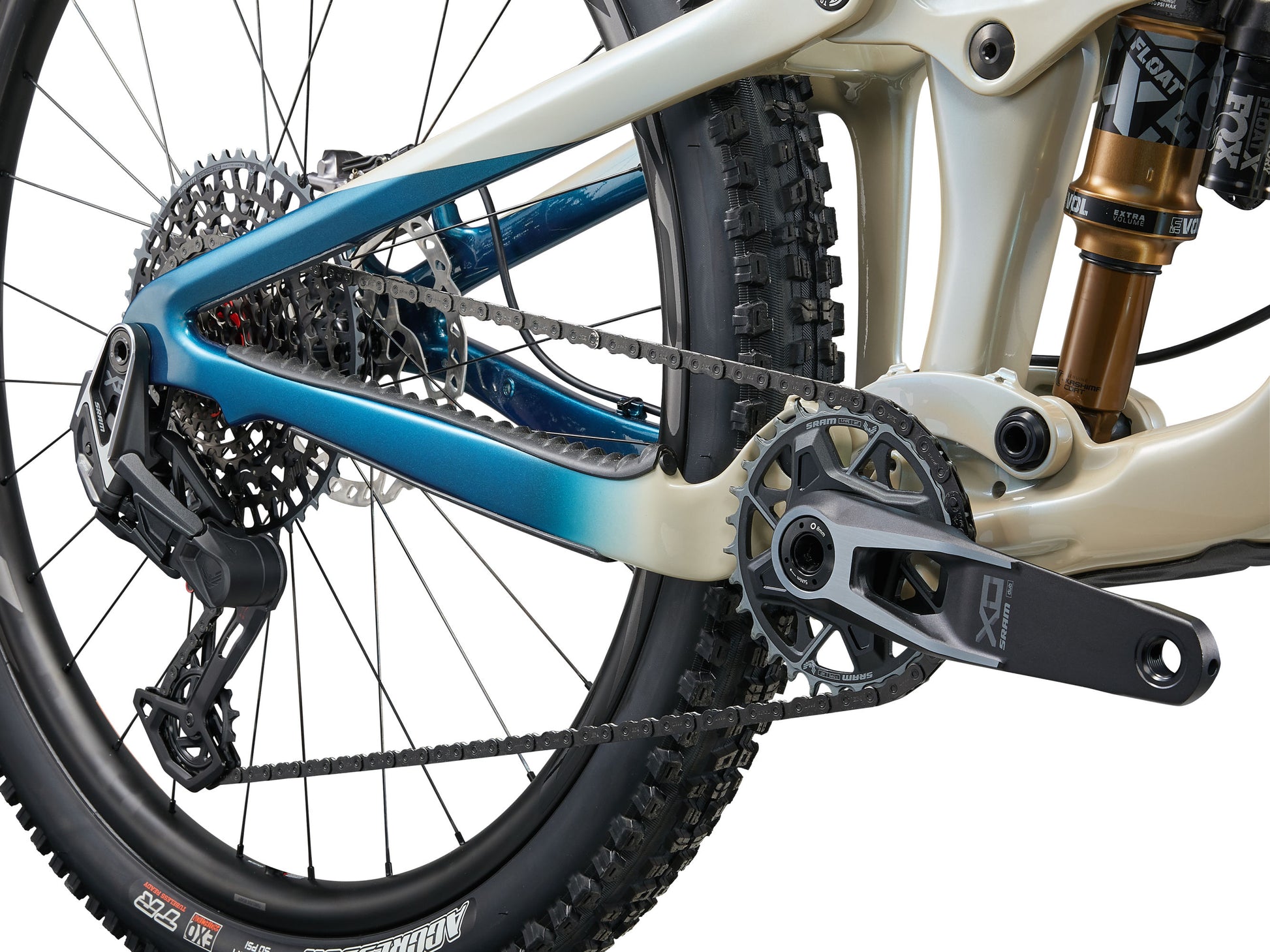

| Crankset | SRAM XO Eagle Transmission, 30T, 55mm chainline — S: 165mm, M/L/XL: 170mm |
| Bottom Bracket | SRAM Press Fit |
| Rims / Wheelset | Giant TRX 2 29 Carbon WheelSystem, 30mm inner width |
| Hubs | Front: Giant MTB alloy, 6-bolt • Rear: Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tires | Front: Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR • Rear: Maxxis Aggressor 29x2.5, EXO, TR, tubeless |
| Extras | Tubeless prepared, max 2.6" tire size, max 34T chainring |
| Weight | Weight varies by size and build. For the most accurate weight, have your local Giant dealer weigh the bike. |
Geometry
| Geometry | S (LOW | HIGH) | M (LOW | HIGH) | L (LOW | HIGH) | XL (LOW | HIGH) |
|---|---|---|---|---|
| Seat Tube Length (mm) | 420 | 430 | 465 | 496 |
| Seatpost Insertion Depth (mm) | 290 | 300 | 335 | 366 |
| Seat Tube Angle | 77.2° | 78.0° | 76.3° | 77.0° | 76.3° | 77.0° | 76.3° | 77.0° |
| Top Tube Length (mm) | 561 | 559 | 599 | 597 | 626 | 624 | 663 | 661 |
| Head Tube Length (mm) | 100 | 110 | 120 | 130 |
| Head Tube Angle | 65.4° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° |
| Fork Rake / Offset (mm) | 44 | 44 | 44 | 44 |
| Trail (mm) | 126 | 120 | 126 | 120 | 126 | 120 | 126 | 120 |
| Wheelbase (mm) | 1166 | 1165 | 1195 | 1194 | 1224 | 1223 | 1263 | 1262 |
| Chainstay Length (mm) | 439 | 437 | 439 | 437 | 439 | 437 | 439 | 437 |
| Bottom Bracket Drop (mm) | 45 | 35 | 45 | 35 | 45 | 35 | 45 | 35 |
| Stack (mm) | 610 | 604 | 619 | 613 | 628 | 622 | 637 | 631 |
| Reach (mm) | 422 | 431 | 447 | 456 | 472 | 480 | 507 | 515 |
| Standover Height (mm) | 729 | 737 | 723 | 732 | 746 | 755 | 751 | 760 |
| Handlebar Width (mm) | 780 | 780 | 780 | 780 |
| Stem Length (mm) | 40 | 40 | 50 | 50 |
| Crank Length (mm) | 165 | 170 | 170 | 170 |
| Wheel Size | 29" | 29" | 29" | 29" |
