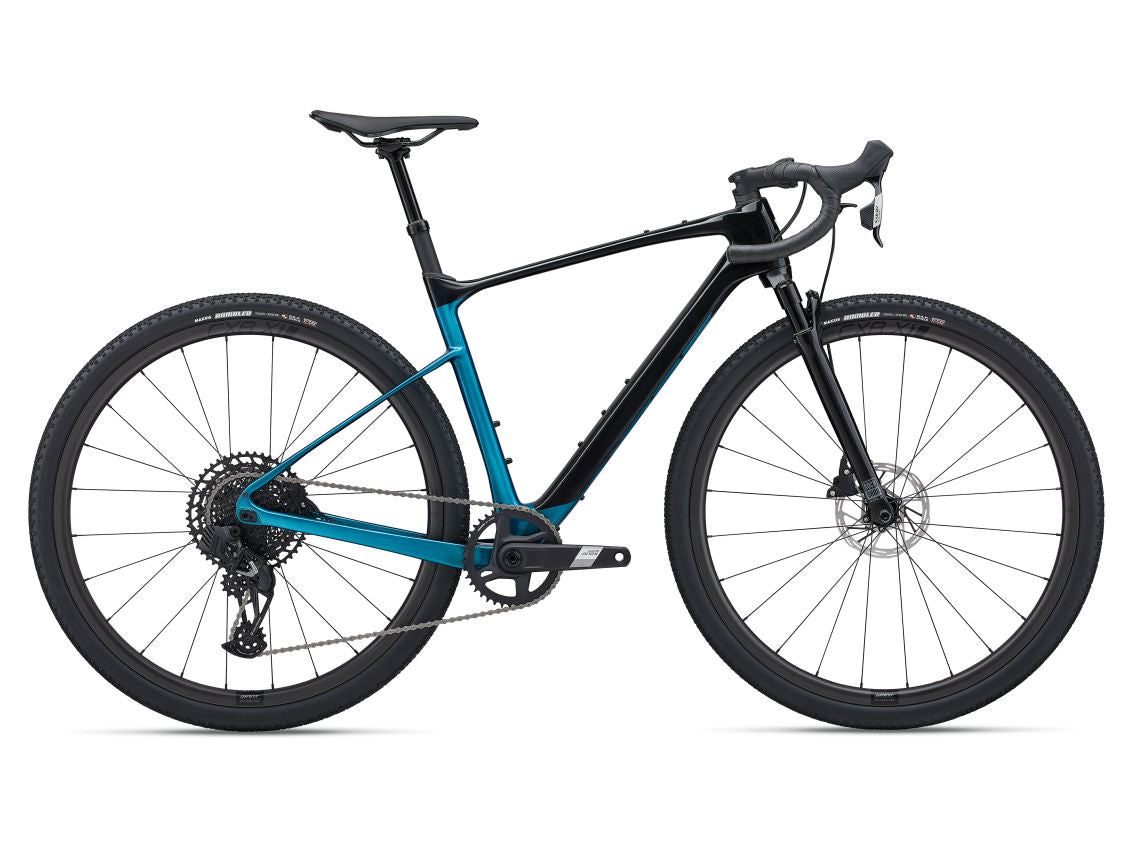

GIant Revolt X Advanced Pro 2

Sizes: XS, S, M, M/L, L, XL

Colours: Black / Sea Sparkle

Frame: Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout

Fork: RockShox Rudy XPLR, 40mm travel, cartridge damper, 12x100mm thru-axle

Shock: N/A

Handlebar: Giant Contact SL XR D-Fuse, 31.8mm

• XS: 44cm

• S: 44cm

• M: 46cm

• M/L: 46cm

• L: 48cm

• XL: 48cm

Grips: Stratus Lite 3.0

Stem: Giant Contact, 8-degree

• XS: 50mm

• S: 50mm

• M: 60mm

• M/L: 70mm

• L: 70mm

• XL: 80mm

Seatpost: Post Moderne suspension dropper, 30.9mm with 30mm suspension

• XS: 365mm / 75mm drop

• S: 415mm / 100mm drop

• (M–XL sizes not specified)

Saddle: Giant Approach SL

Pedals: N/A

Shifters: SRAM Apex AXS, 1x12

Front Derailleur: N/A

Rear Derailleur: SRAM X1 AXS Eagle, 1x12, with battery protector

Brakes: SRAM hydraulic disc, SRAM Paceline rotors (160mm front / 160mm rear)

Brake Levers: SRAM Apex AXS hydraulic, left lever dropper switch

Cassette: SRAM PG-1230, 12-speed, 11–50T

Chain: SRAM CN-EAGL-NX-A1, 12-speed

Crankset: SRAM Apex 1 Wide DUB, 40T

• XS: 170mm

• S: 170mm

• M: 172.5mm

• M/L: 172.5mm

• L: 175mm

• XL: 175mm

Bottom Bracket: SRAM DUB, press fit

Rims: Giant CXR X1 WheelSystem, 25.8mm internal (front & rear)

Hubs:

• Front: Giant CXR X alloy, CenterLock, 12mm thru-axle

• Rear: Giant CXR X alloy, 60T ratchet driver, CenterLock, 12mm thru-axle

Spokes: Sapim Laser

Tires: Maxxis Rambler, 700x45c, tubeless prepared

Extras: Tubeless prepared; 53mm max tire clearance in “long” flip chip position, 45mm max in “short” position

Max Tire Clearance: 700x53mm (long rear-center position)

Weight: Weight may vary by size, finish, hardware, and accessories. For the most accurate weight, consult your local dealer.
