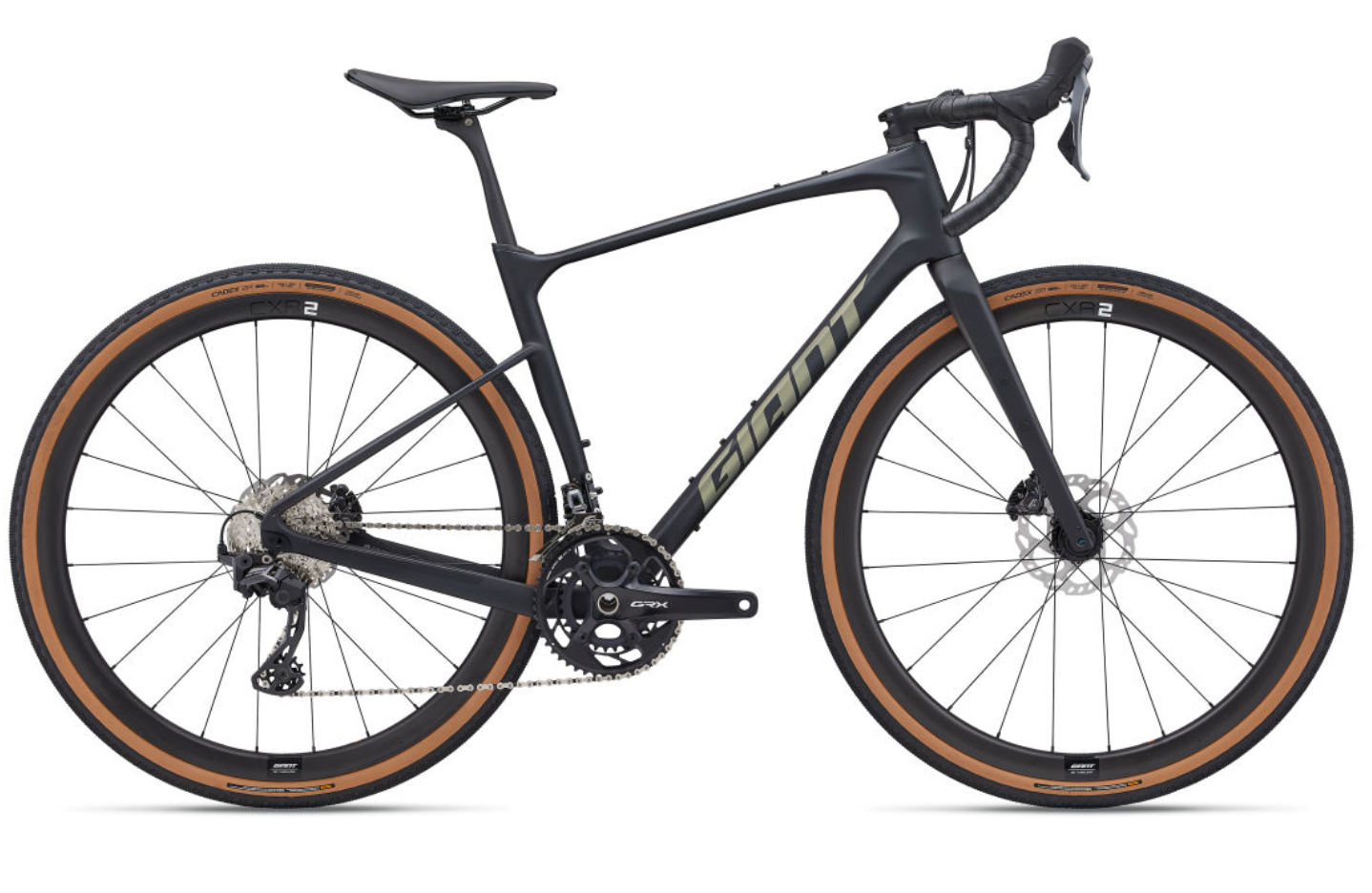

GIANT 2024 - REVOLT ADVANCED 0

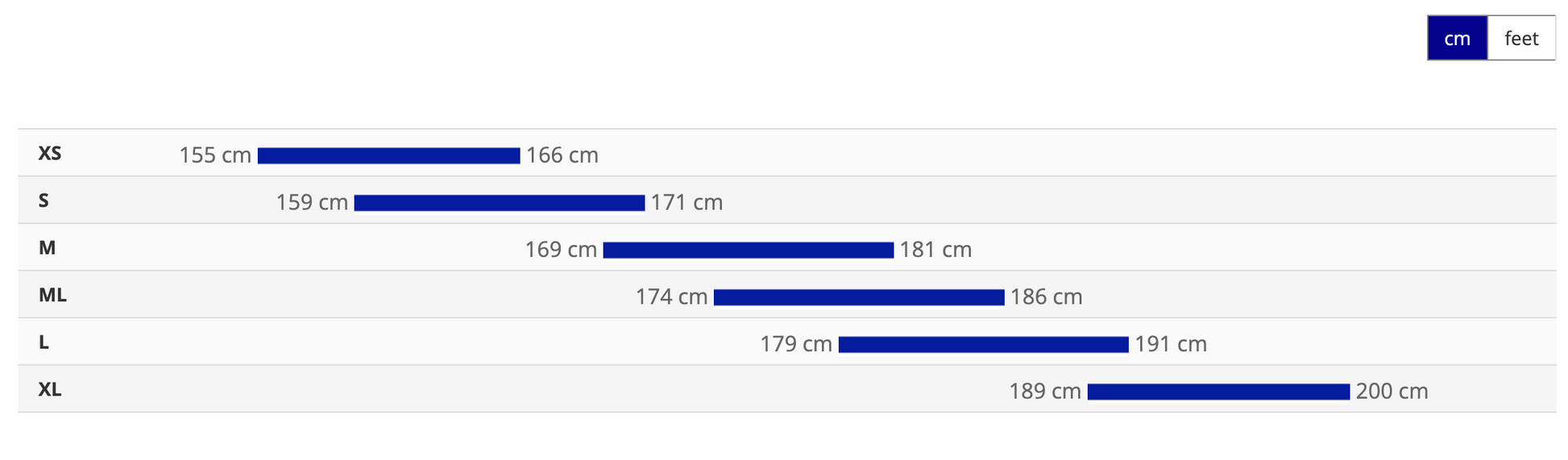

Sizes: XS, S, M, M/L, L, XL

Colours: Carbon

Frame: Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout

Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Shock: N/A

Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips: Stratus Lite 3.0

Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost: Giant D-Fuse SL, composite, 14mm offset

Saddle: Giant Approach

Pedals: no pedal [GA, Pan-Eu] platform pedal [GU, GV, GJ] pedal w/toeclip and strap [All other GSC]

Shifters: Shimano GRX RX-820, 2x12

Front Derailleur: Shimano GRX RX-820

Rear Derailleur: Shimano GRX RX-820

Brakes: Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm

Brake Levers: Shimano GRX RX-820 hydraulic

Cassette: Shimano CS-HG710, 11-speed, 11x36

Chain: KMC X12L-1

Crankset: Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket: Shimano, press fit

Rims: Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm

Hubs: [F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle

Spokes: Sapim Sprint

Tires: CADEX AR, 700x40c, tubeless

Extras: tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position

Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
