CANNONDALE - U TRAIL 2

Details

• Platform

  Trail
• Model Name

  Trail 2
• Model Code

  C26065U

Frameset

• Frame

  Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
• Fork

  SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
• Headset

  Semi-Integrated, 1-1/8"

Drivetrain

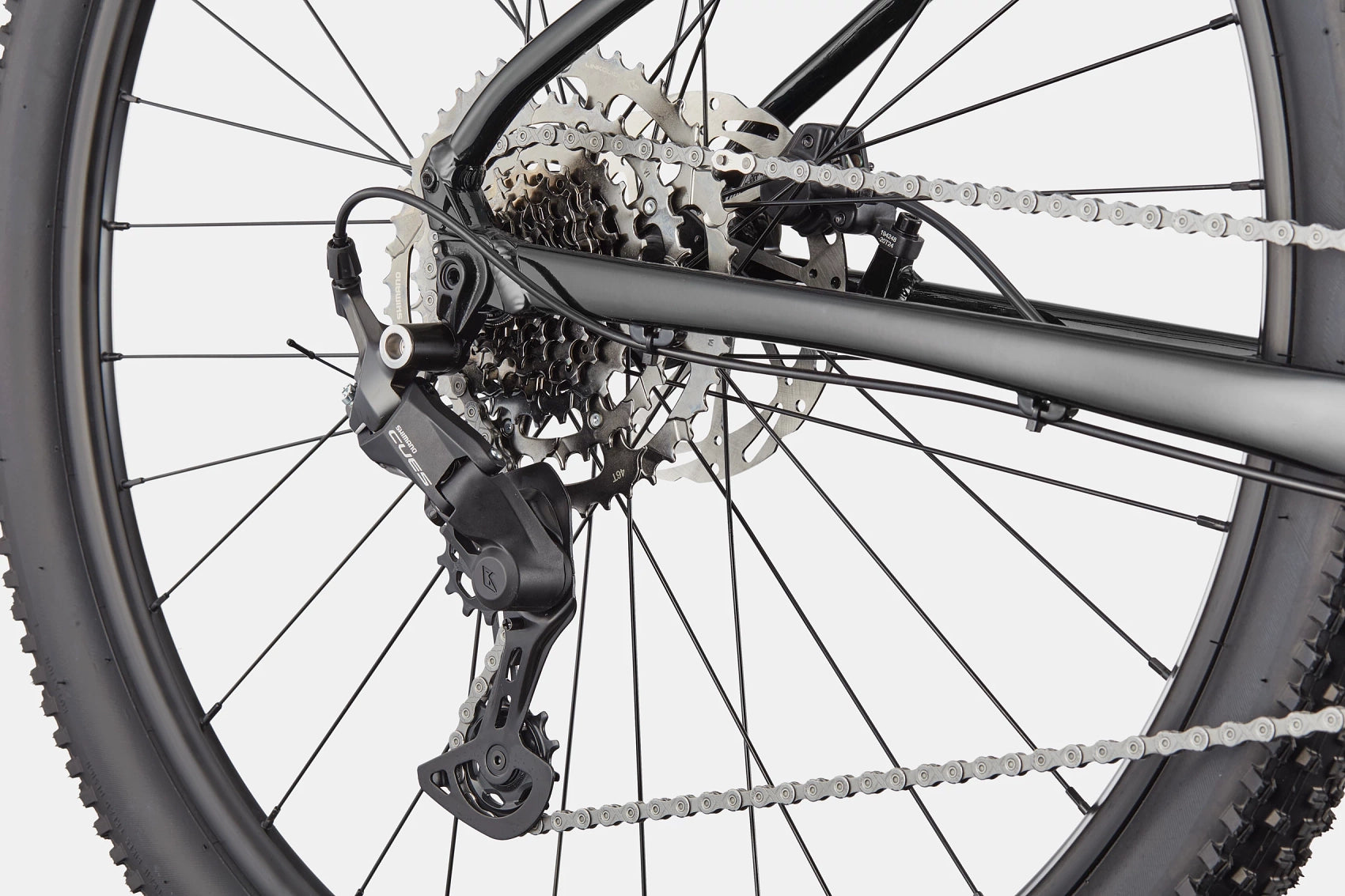

• Rear Derailleur

  Shimano CUES U4000
• Shifters

  Shimano CUES U4000, 9-speed
• Chain

  KMC X9, 9-speed

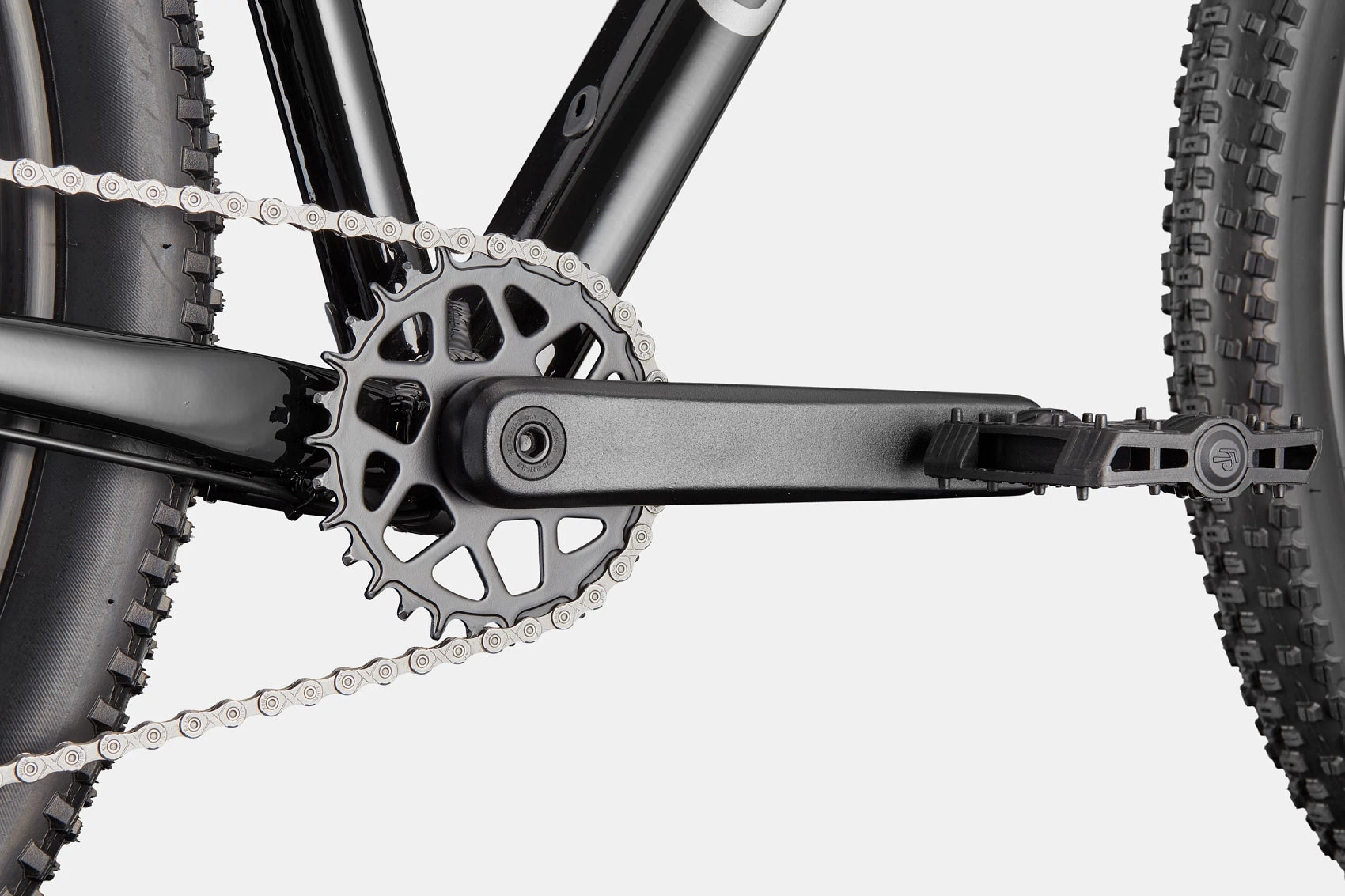

• Crank

  Prowheel, Charm 30T
• Rear Cogs

  Shimano CUES, 11-46, 9-speed
• Bottom Bracket

  ProWheel, square taper

Brakes

• Brakes

  Tektro M275 hydraulic disc, 160/160mm rotors
• Brake Levers

  Tektro hydraulic disc

Wheels

• Front Hub

  Formula DC-51, 15x100mm
• Rear Hub

  Formula DC-1422, 12x142mm
• Rims

  WTB SX19, 32h
• Spokes

  Stainless Steel, 14g
• Tire Size

  2.25
• Wheel Size

  27.5/29
• Tires

  WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)
• Front Tire

  WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)
• Rear Tire

  WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)

Components

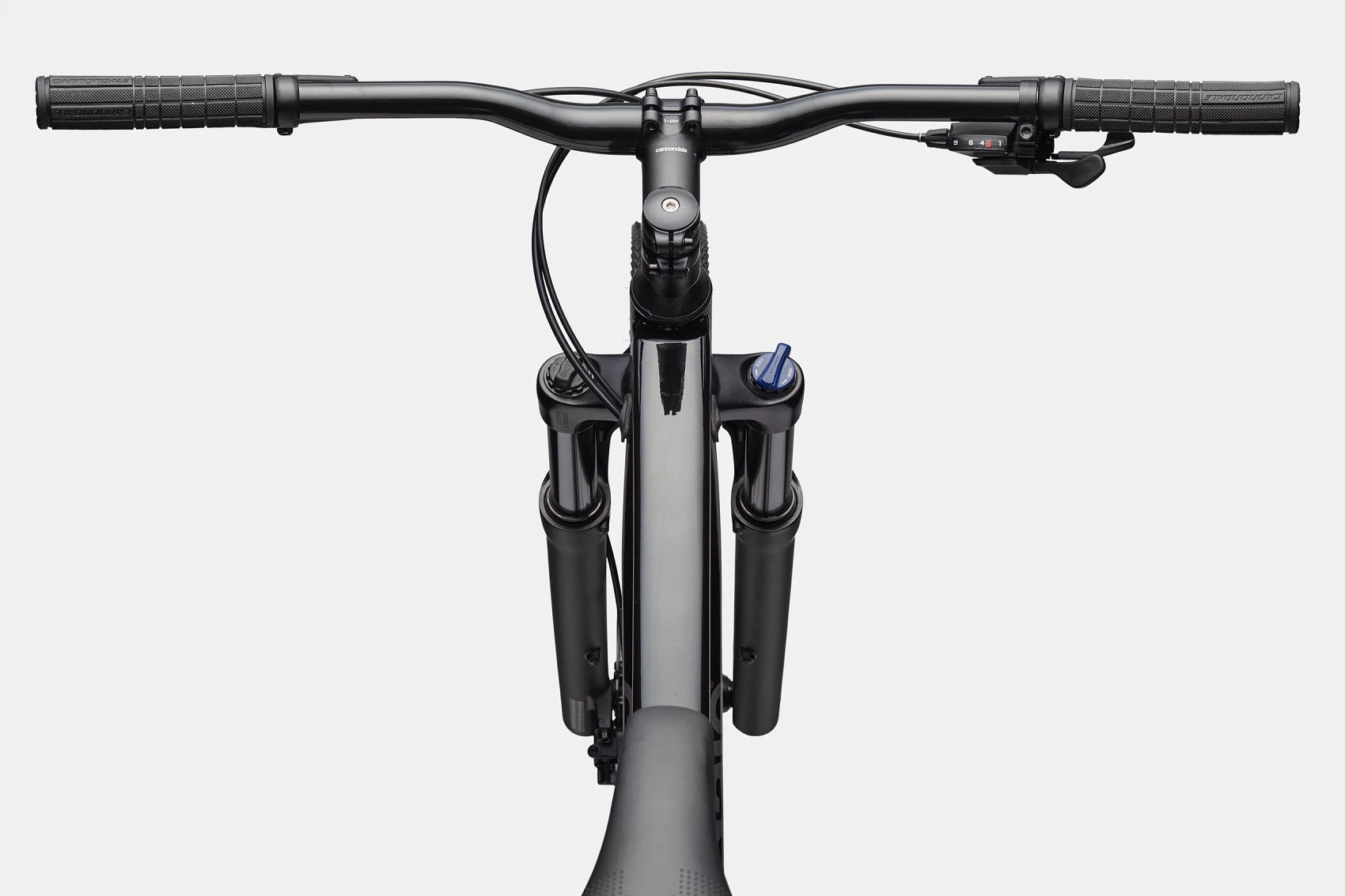

• Handlebar

  Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
• Stem

  Cannondale 4, 6061 Alloy, 31.8, 6°
• Grips

  Cannondale
• Saddle

  Cannondale Trail
• Seatpost

  Cannondale 4, 6061 Alloy, 31.6
