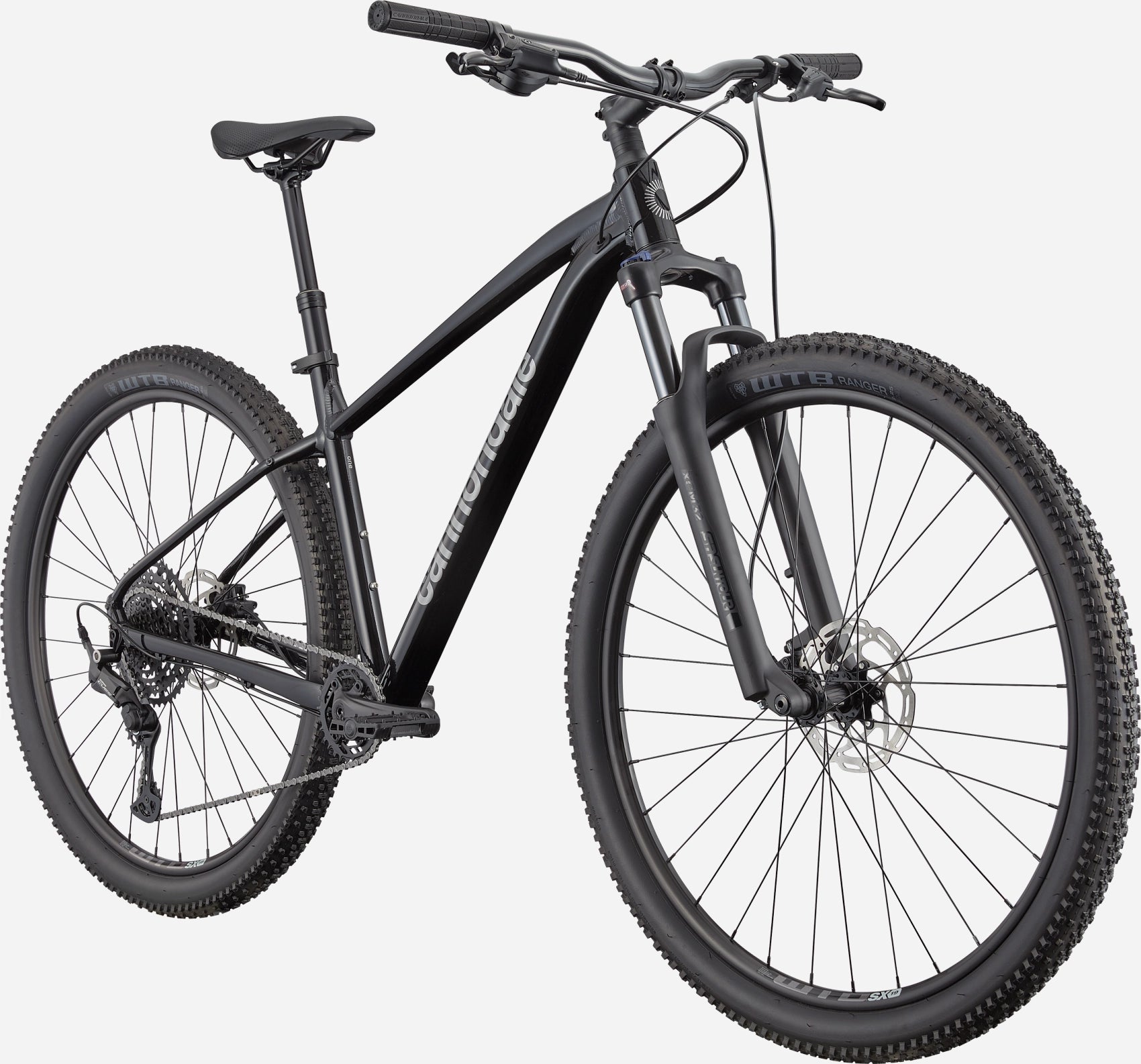

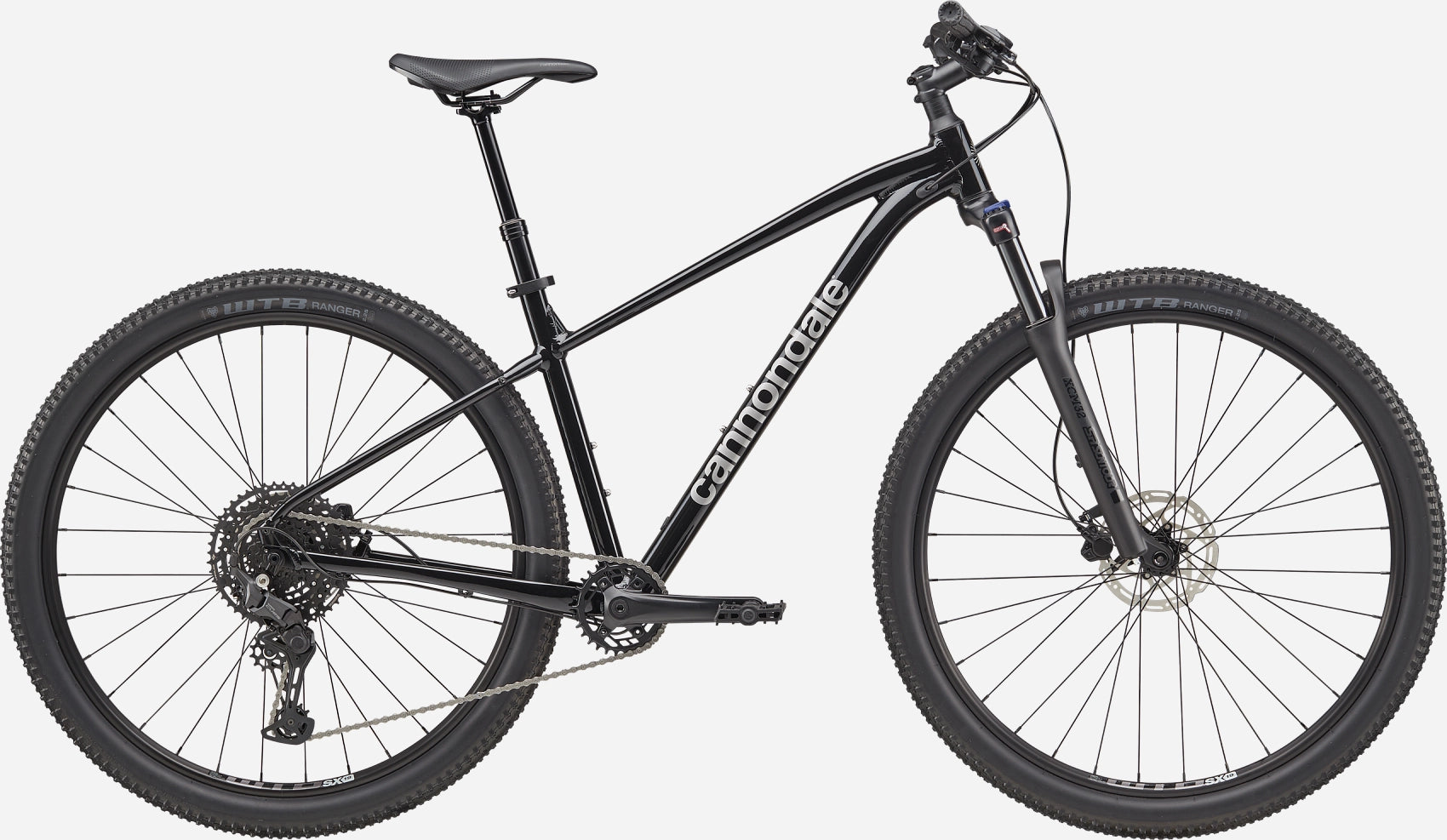

CANNONDALE - U TRAIL 1

• cPlatform

  Trail
• Model Name

  Trail 1
• Model Code

  C26055U

Frameset

• Frame

  Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
• Fork

  SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
• Headset

  Semi-Integrated, 1-1/8"

Drivetrain

• Rear Derailleur

  Shimano CUES U6000
• Shifters

  Shimano CUES U6000, 10-speed
• Chain

  KMC X10, 10-speed

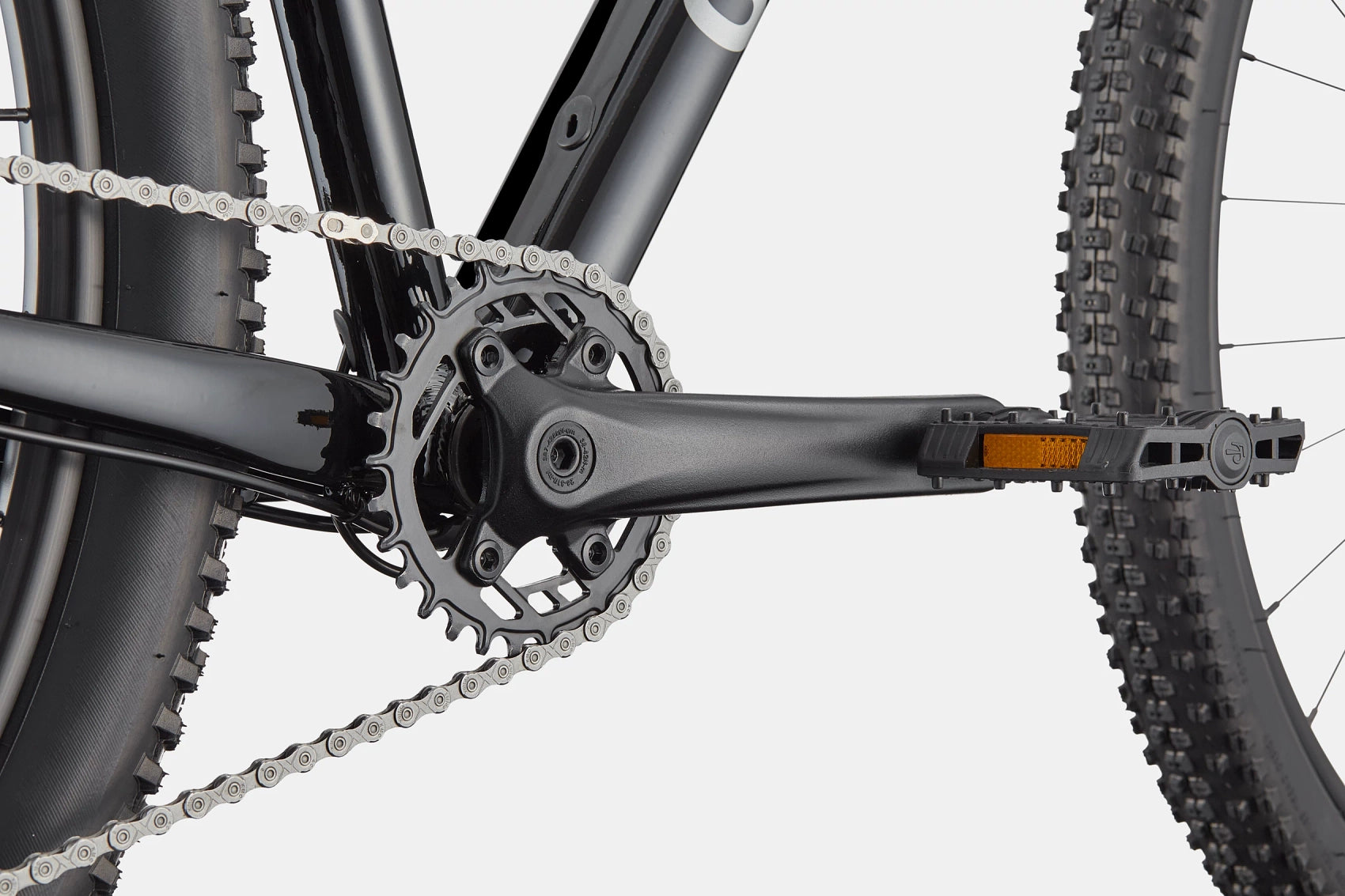

• Crank

  Prowheel, Charm 30T
• Rear Cogs

  Shimano CUES, 11-48, 10-speed
• Bottom Bracket

  ProWheel, square taper

Brakes

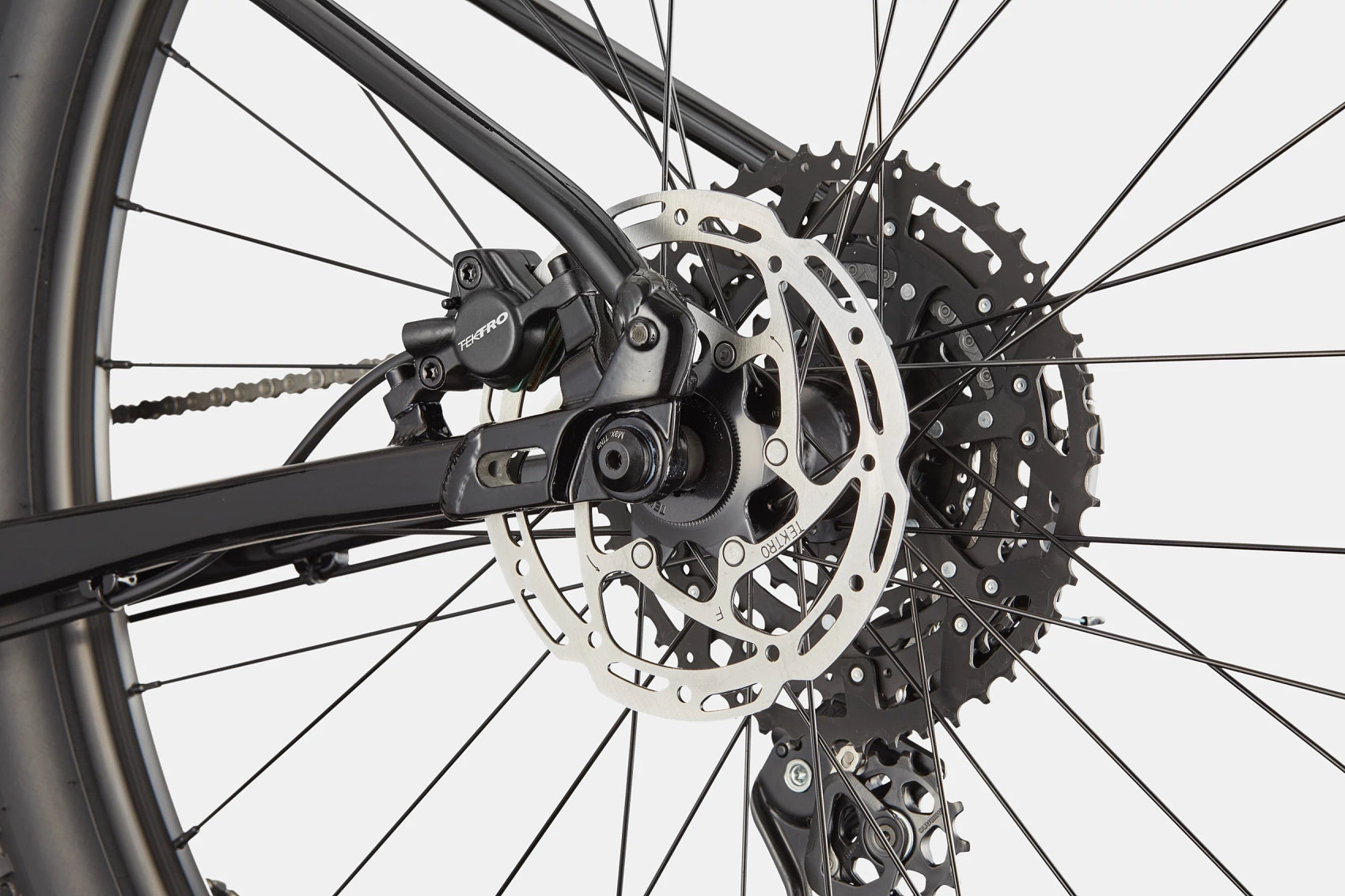

• Brakes

  Tektro M275 hydraulic disc, 160/160mm rotors
• Brake Levers

  Tektro hydraulic disc




  Wheels

  • Front Hub

    Shimano TC500, 15x110mm
  • Rear Hub

    Shimano TC500, 12x142mm
  • Rims

    WTB SX19, 32h
  • Spokes

    Stainless Steel, 14g
  • Tire Size

    2.25
  • Wheel Size

    27.5/29
  • Tires

    WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)
  • Front Tire

    WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)
  • Rear Tire

    WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)

  Components

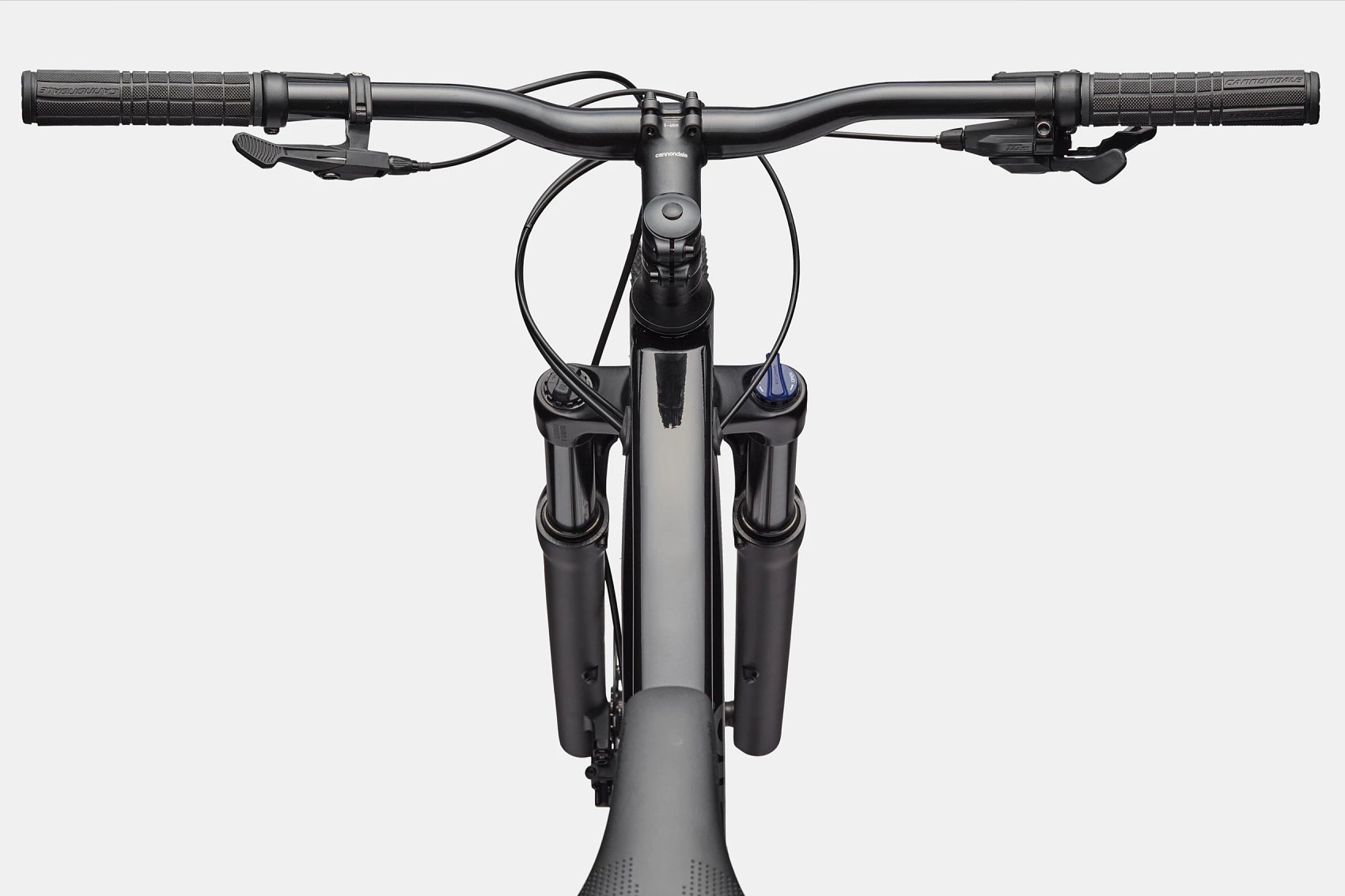

  • Handlebar

    Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
  • Stem

    Cannondale 4, 6061 Alloy, 31.8, 6°
  • Grips

    Cannondale
  • Saddle

    Cannondale Trail
  • Seatpost

    JD Dropper, internal routing, 31.6, 130mm
