CANNONDALE - MOTERRA CARBON 2

• Platform

  Moterra Neo
• Model Name

  Moterra Carbon 2
• Model Code

  C25272U

Frameset

• Frame

  Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
• Fork

  RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
• Headset

  Acros integrated sealed bearing, tapered
• Rear Shock

  RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound

E-System

• Drive Unit

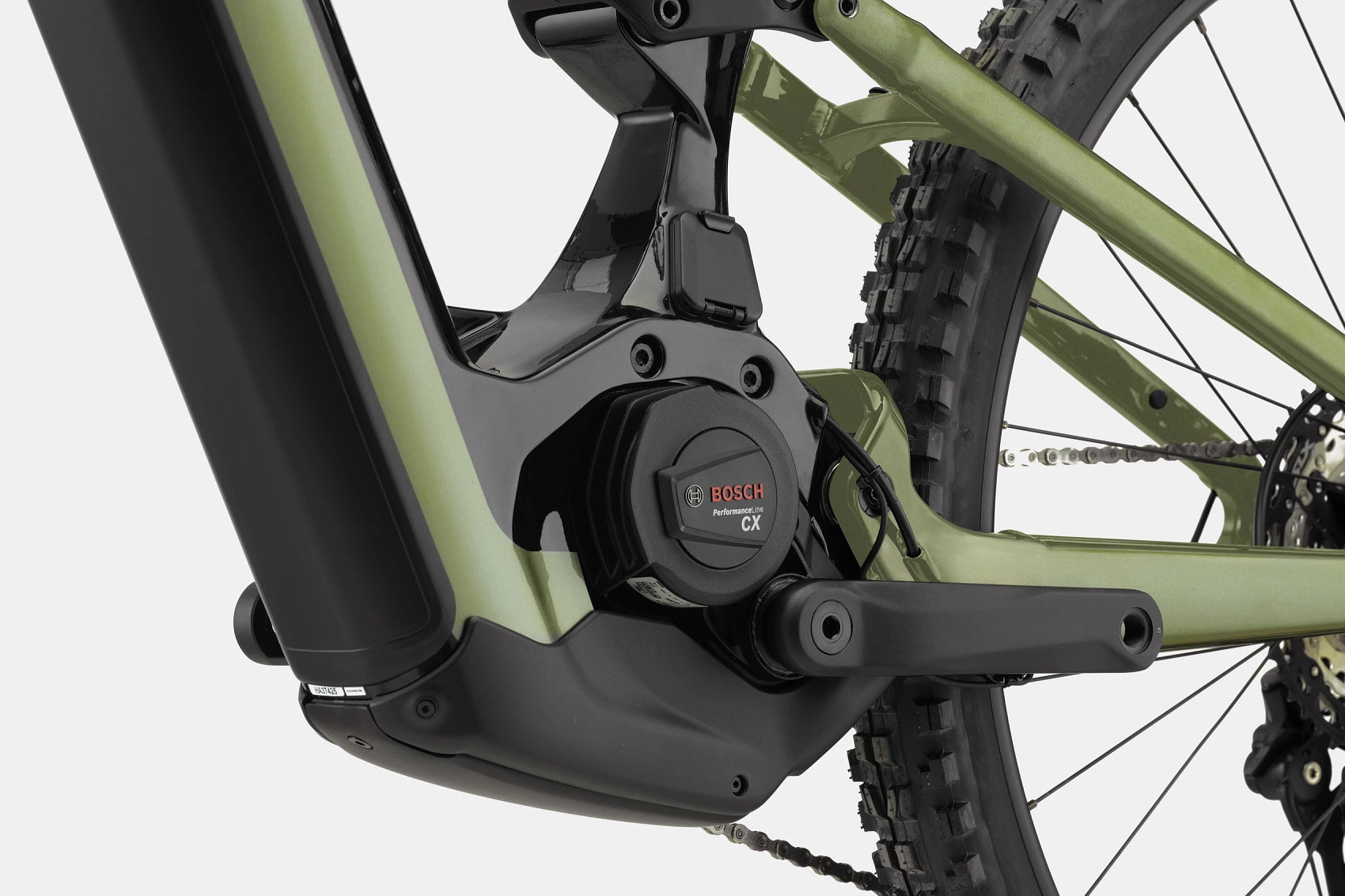

  Bosch Performance Line CX 250W
• Battery

  Bosch PowerTube, 750Wh
• Charger

  Bosch 4A
• Display

  Bosch Kiox 300 w/ LED remote
• Certifications

  UL 2849

Drivetrain

• Rear Derailleur

  Shimano XT
• Shifters

  Shimano SLX, 12-speed
• Chain

  Shimano SLX, 12-speed
• Crank

  FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
• Rear Cogs

  Shimano SLX, 10-51, 12-speed

Brakes

• Brakes

  Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors
• Brake Levers

  Shimano MT501 hydraulic disc

  • Rims

    WTB ST i30 TCS, 32h, tubeless ready
  • Spokes

    DT Swiss Champion
  • Tire Size

    2.6
  • Wheel Size

    29
  • Hubs

    (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
  • Tires

    (F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready
  • Front Tire

    Maxxis Minion DHF, 29x2.6", EXO, tubeless ready
  • Rear Tire

    Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready

  Components

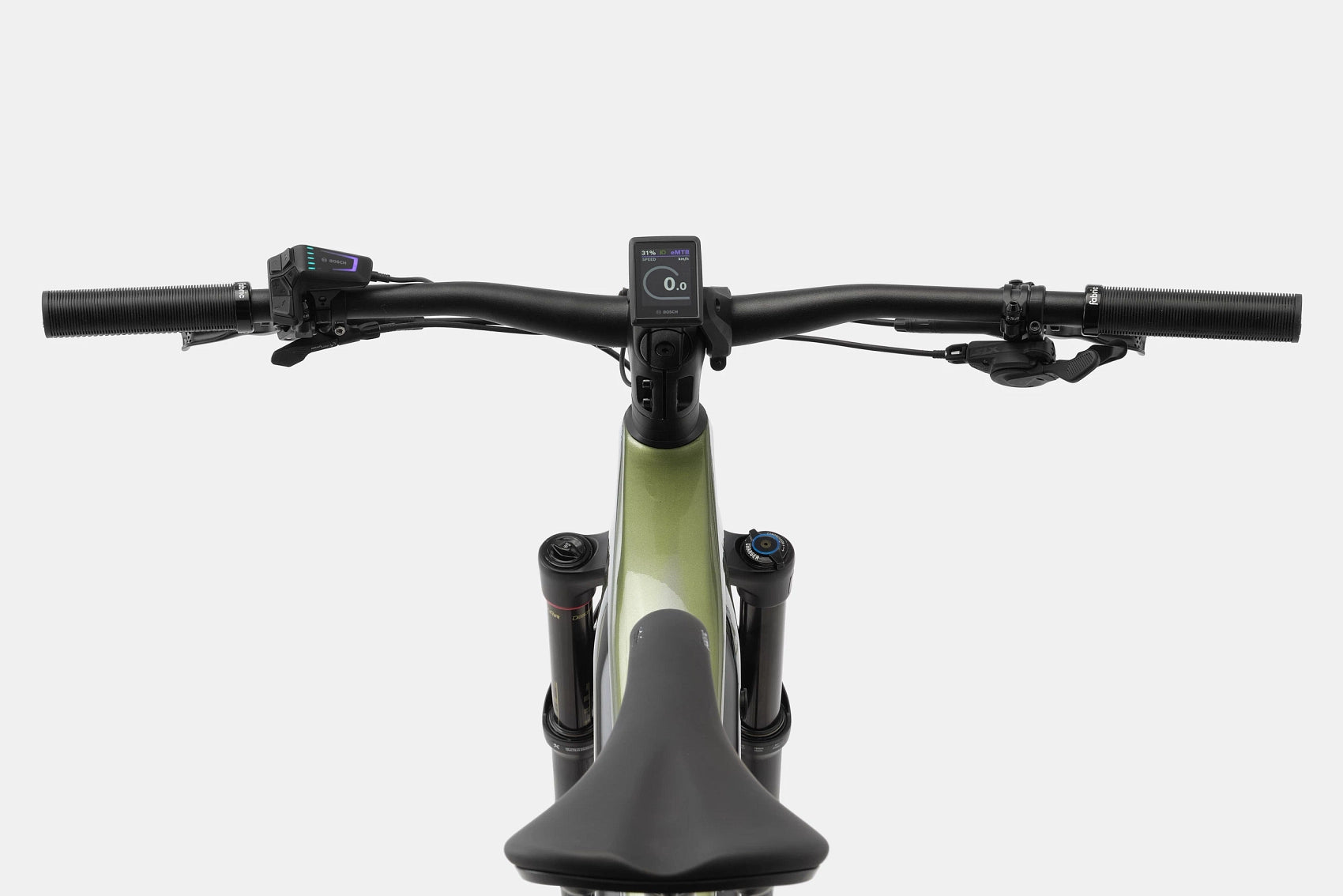

  • Handlebar

    Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
  • Stem

    Cannondale 2, 6061 Alloy, 35mm, 0°
  • Grips

    Fabric FunGuy
  • Saddle

    Fabric Scoop Shallow Sport, steel rails
  • Seatpost

    Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)

  Extra

  • Extra 1

    Pre-installed light cable. (Note: this model is not compatible with Bosch Range Extender)
