SHIMANO

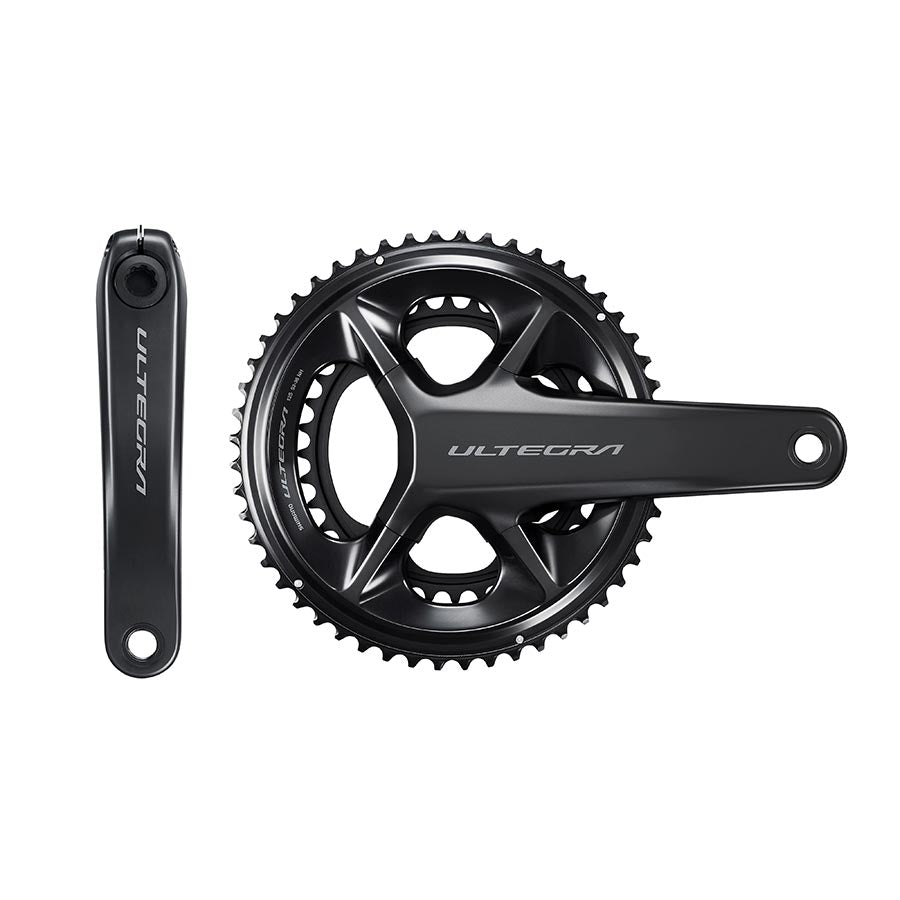

FRONT CHAINWHEEL, FC-R8100, ULTEGRA, FOR REAR 12-SPEED, HOLLOWTECH 2, 170MM, 50-34T W/O CG, W/O BB PARTS
FRONT CHAINWHEEL, FC-R8100, ULTEGRA, FOR REAR 12-SPEED, HOLLOWTECH 2, 170MM, 50-34T W/O CG, W/O BB PARTS
Couldn't load pickup availability
ULTEGRA's new FC-R8100 crank maintains the same quick, precise front shifting and efficient power transfer that Shimano riders have grown accustomed to, but with even more crank arm length options. Spanning 160 to 175 mm in length, ULTEGRA cranks now cater to smaller riders, triathletes, and cyclists curious about shorter crank arms.
An integral part of Shimano's new 12-speed road lineup, the FC-R8100 crank builds upon Shimano's legendary front shifting and transmission efficiency. With new refinements for seamless 12-speed shifting, the ULTEGRA crank is now offered in lengths from 160 to 175 mm, bringing performance and improved fit for smaller riders, triathletes, and riders with specific biomechanical requirements.
| MODEL NO | FC-R8100 |
|---|---|
| SERIES | ULTEGRA R8100 Series |
| Color | Series color |
| Average weight | 700 (50-34T) 711 (52-36T) |
| Threaded bottom bracket shell width (mm)_70 | ✔ |
|---|---|
| Chainring combination | 50-34T 52-36T |
| Compatible bottom bracket type_Outboard | ✔ |
| Crank fixing screw included | ✔ |
| Crank arm length (mm)_160 | ✔ |
| Crank arm length (mm)_165 | ✔ |
| Crank arm length (mm)_170 | ✔ |
| Crank arm length (mm)_172.5 | ✔ |
| Crank arm length (mm)_175 | ✔ |
| Spider/Gear arms | 4 |
| HOLLOWGLIDE | ✔ |
| HOLLOWTECH II | ✔ |
| HOLLOWTECH crank arm | ✔ |
| Optional chain guard_Without chain/bash guard | ✔ |
| Recommended bottom bracket_Press-fit | SM-BB72-41B |
| Recommended bottom bracket_Threaded (normal) | SM-BBR60 |
| Threaded bottom bracket shell width (mm)_68 | ✔ |
| Q-factor (mm) | 148 |
| Chain line (mm) | 44.5 |
| Compatible chain | HG 12-speed |
| P.C.D. (mm) | 110 |
| Rear speeds | 12 |
